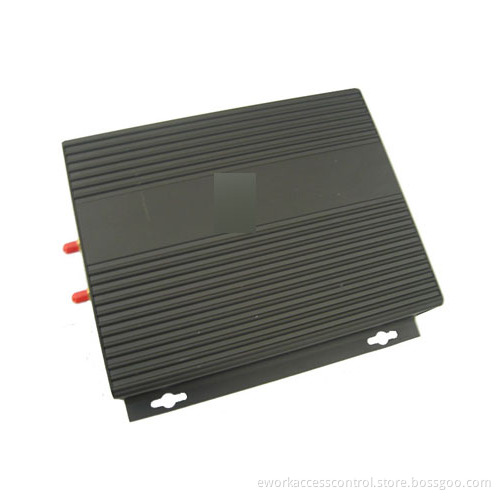

Access Control Long Distance Card Reader

Access Control Long Distance Card Reader

Specifications: Explanation

Operating Frequency: 902MHz to 928MHz
RF protocol: ISO18000-6B, EPC Class 1, EPC Class 1 GEN 2
Operating Method: FHSS or fixed frequency(Set by software)
Antenna ports: 2 Ports, SMA
Max RF power: 30 dBm
Power smoothness: Less than 0.5 dB
RF power range: 20 to 30 dBm (Adjustable by software)
Identify tag mode Fixed time automatically reads the tag; External trigger control reads the tag or the software control reads the tag, Identify tag mode can be set
Identify tag time less than 8ms(Identify single tag)
Reading/Writing time: Reads every 8 bytes to be smaller than 5ms, writes every 4 bytes to be smaller than 25ms
Reading distance: More than 8m (antenna dependent)
Writing distance: More than 5m (antenna dependent)
Communication interface
TYPE A: RS-232, RS-485, \Wiegand26/34
TYPE B: RS-232, RS-485, Wiegand, USB
TYPE E: RS-232, Wiegand, Ethernet
Input/Output: 2 triggering inputs, 2 relays output
Power Supply: DC 5V
Power Consumption less than 5W
Size: 460mm*460mm*50mm
Work Temperature: -10 C to 55 C
Storage Temperature: -20 C to 85C
Work status indication: Buzzer and LED
