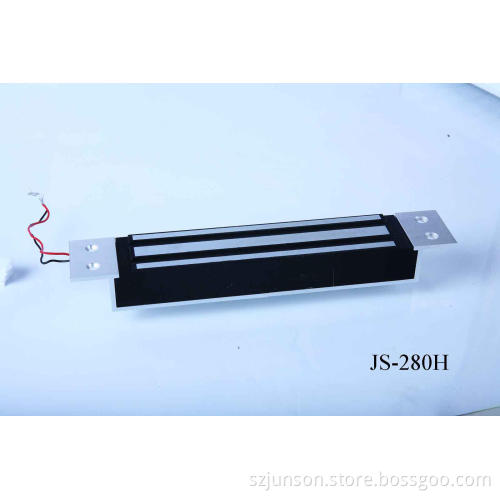

600lbs Single Door Magnetic Lock with Mortise Mount (JS-280H)

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Money Gram, Western Union

Product Description

Single Door Magnetic Lock with Mortise Mount (600Lbs) (JS-280H)

Lock Size: 227Lx38Wx28H(mm)
Armature plate: 185Lx38Wx12H(mm)
Holding Force: 280kg(600Lbs)
Voltage: 12/24VDC
Current Draw: 12V/480mA 24V/240mA
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20
Operating Temp: -10~+55(14-131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2kg
Standard Packing: 12PCS

Collinear Load Test 280kg, 600pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
High Strength Material(kasolite steel), Anodized Aluminum Housing
Design with no Mechanical Bolt
Increase the holding Force, Dual Insulative Hosing
