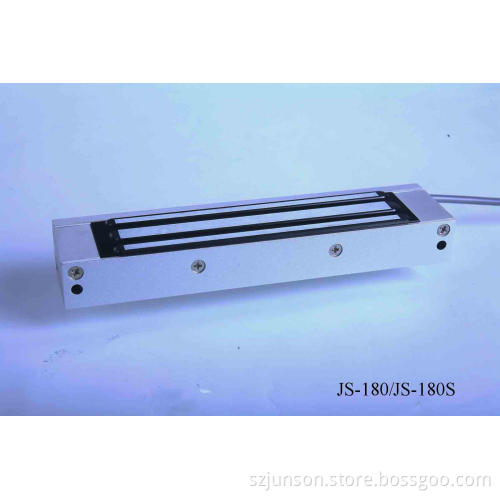

300lbs Single Door Magnetic Lock with CE (JS-180)

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Paypal, Money Gram, Western Union

Product Description

Single Door Magnetic Lock(300Lbs) (JS-180)
Lock Size: 170Lx40Wx21H(mm)
Armature plate: 130Lx33Wx12H(mm)
Holding Force: 180kg(300Lbs)
Voltage: 12/24VDC
Current Draw: 12V/380mA 24V/190mA
Available Bracket: JS-18U, JS-18L
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20
Operating Temp: -10~+55(14-131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 1.2kg
Standard Packing: 20PCS
Standard carton dimension: 400Lx280Wx182H(mm)

Collinear Load Test 180kg, 300pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
High Strength Material(kasolite steel), Anodized Aluminum Housing
Design with no Mechanical Bolt
Increase the holding Force, Dual Insulative Hosing
