600lbs Double Door Magnetic Lock with LED

Get Latest Price

Payment Type:: L/C, T/T, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union, Paypal

Product Description

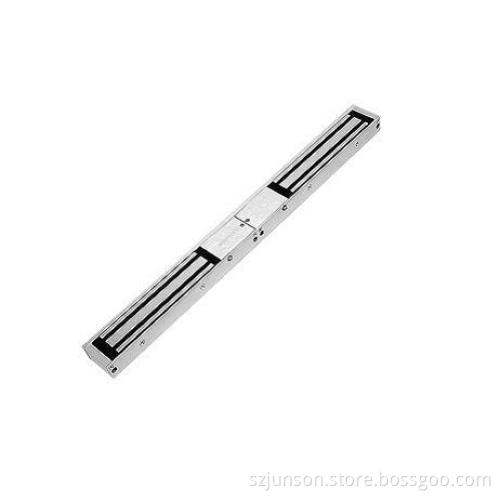

Double Door Magnetic Lock with LED (600LBS)
600lbs Double Door Magnetic Lock with LED

Lock Size: 500Lx49Wx25H(mm)
Armature plate: 180Lx38Wx12.5H(mm)
Holding Force: 280kgx2(600Lbsx2)
Voltage: 12/24VDC
Current Draw: 12V/500mA 24V/250mA
Available Bracket: JS-28U, JS-28L
Signal Output: Dry Contact, Max Rating of Contact Current 3A
LED indicates the door is unlock, Green indicates the door is lock
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤+20
Operating Temp: (14-131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 4kg
Standard Packing: 6PCS

Collinear Load Test 280kgx2, 600poundsx2
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
LED Indicates the Door Status
Door Status sensor(NO/NC/COM)
High Strength Material(kasolite steel), Anodized Aluminum Housing
Design with no Mechanical Bolt
Increase the holding Force, Dual Insulative Hosing

All of our magnetic locks come with the armature plate and fitting
Screws
