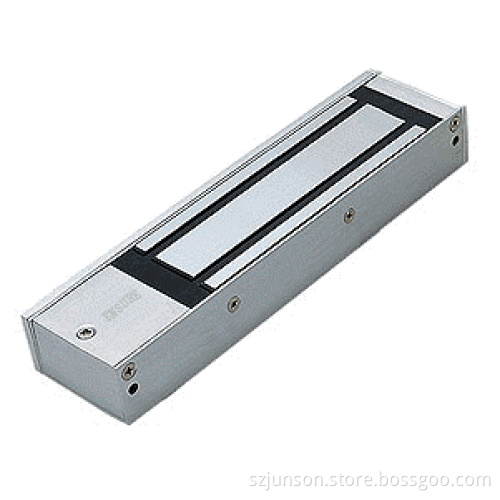

1200lbs Single Door Electromagnetic Lock with LED (JS-500S)

Single Door Magnetic Lock with LED (1200LBS) (JS-500S)


Lock Size: 265L x 75W x 38.8H(mm)
Armature plate: 185Lx60Wx13H(mm)
Holding Force: 500kg (1200Lbs)
Voltage: 12/24VDC
Current Draw: 12V/420mA 24V/210mA
Signal Output: Dry Contact, Max Rating of Contact Current 3A
LED indicates the door is unlock, Green indicates the door is locked
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤+20°C
Operating Temp: (14-131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 4.5kg
Standard Packing: 4PCS

Collinear Load Test 500kg, 1200pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
LED Indicates the Door Status
Door Status sensor (NO/NC/COM)
High Strength Material(kasolite steel), Anodized Aluminum Housing
Design with no Mechanical Bolt
Increase the holding Force, Dual Insulative Hosing
