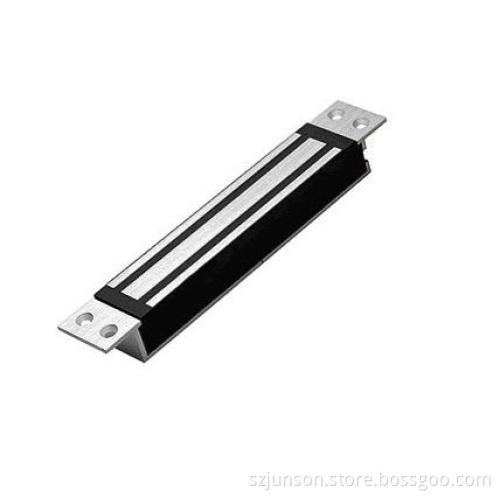

600 Lbs Single Door Magnetic Lock with Mortise Mount

600lbs Single Door Magnetic Lock with Mortise Mount


Lock Size: 227Lx38Wx28H(mm)

Armature plate: 185Lx38Wx12H(mm)

Holding Force: 280kg(600Lbs)

Voltage: 12/24VDC

Current Draw: 12V/480mA 24V/240mA

Suitable for: Wooden door, Glass door, Metal door, Fireproof door

Surface Temp: ≤ +20

Operating Temp: 10~+55(14-131F)

Suitable Humidity: 0~90%(non-condensing)

Finishes for Shell: Anodized aluminum

Finishes for Magnetic: Zinc

Finishes for Armature: Zinc

Weight: 2.0kg/pc
