Product Description

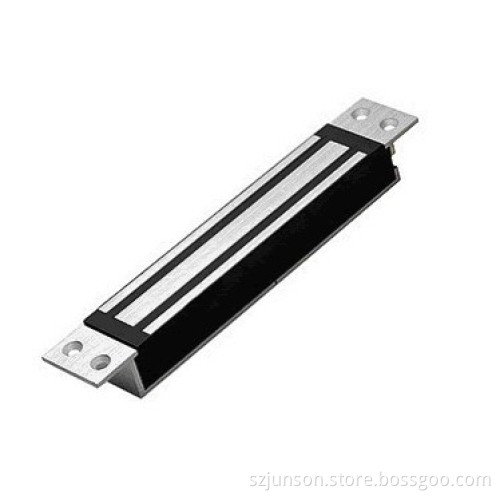

Mortise Mount Magnetic Lock Door Lock (600LBS)

Collinear Load Test 280kg, 600pounds

Dual Voltage 12 or 24 VDC(optional)

The Standard Voltage is 12VDC when Finished

MOV Provides Reverse Current Protection

High Strength Material(kasolite steel), Anodized Aluminum Housing

Design with no Mechanical Bolt

Increase the holding Force, Dual Insulative Hosing

Lock Size: 227Lx38Wx28H(mm)

Armature plate: 185Lx38Wx12H(mm)

Holding Force: 280kg(600Lbs)

Voltage: 12/24VDC

Current Draw: 12V/480mA 24V/240mA

Suitable for: Wooden door, Glass door, Metal door, Fireproof door

Surface Temp: ≤ +20

Operating Temp: 10~+55(14-131F)

Suitable Humidity: 0~90%(non-condensing)

Finishes for Shell: Anodized aluminum

Finishes for Magnetic: Zinc

Finishes for Armature: Zinc

Weight: 2kg

Standard Packing: 12PCS
