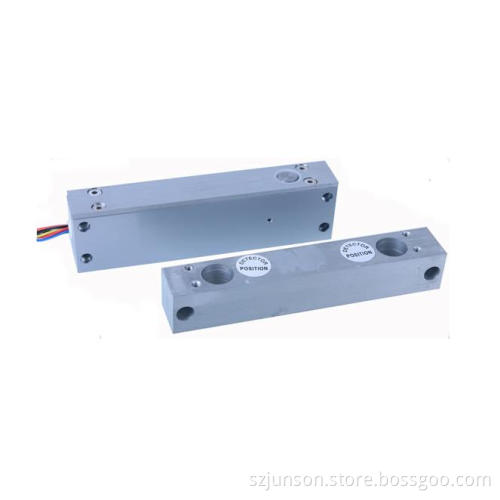

Narrow Door Electric Deadbolt Lock (JS-1501SLD)

Narrow Door Electric Deadbolt Lock (JS-1501SLD)

Parameters
Fail Safe:unlock when power off
Lock size: 148.5Lx24.5Wx39H(mm)
Magnet plate size: 148.5Lx24.5Wx20H(mm)
Lock pin: 12.5mmDIA,stainless steel 15mm throw
Voltage: DC12V(DC24V)
Start Current: 12VDC/1.3A; 24VDC/0.5A
Standby Current: 12VDC/0.08A; 24VDC/0.05A
Solid lock pin: polishing housing, 1000Kg Holding Force
Suitable For: Narrow frame of wood door, metal door
Signal Output: 1.. Door Status sensor, NC/COM,
2. Lock Status sensor, NC/COM
These 2 senores can be used together or alone as option.
Auto relock jumper: adjustable (0~6S)
Surface Temp: Low Temperature
Induction Distance: 8mm
Operating temp: -10~+25(14-131F)
Operating Humidity: 0~90%(non-condensing)
Face place material:High Aluminum, Carrulous Line Finished
Weight: 0.7kg
Standard Packing: 10pcs.
Carton size: 53Lx30Wx14H(cm)

Feature
  Low Temperature, safe & Durable
  Low Power, Environmental Protection
  Special Designed Solenoid for Strength and Long Life  with 500000 Operations
  MOV Provides Reverse Current Protection
   Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt
  CE Certificate by European Union,  MA China Public Security office
  Photoelectricity Control, Low Temperature,
A: The Low Electric Current Changed in the Twinkling of eyes;
B:Location on the Door is not Straight, The Door withstands the bolt, The low temperature changing will be achieved also
C:The Photoelectricity Controls Technology, Prevent the Trouble of the Machinery

We offer many types of Electric lock, such as: Electromagnetic lock, magnetic lock, Electric drop bolt, Electric dead bolt, Panic bar, Panic exit device, Exit control lock, Emergency lock, Electric strike lock. Hotel lock, fingerprint lock and so on.
