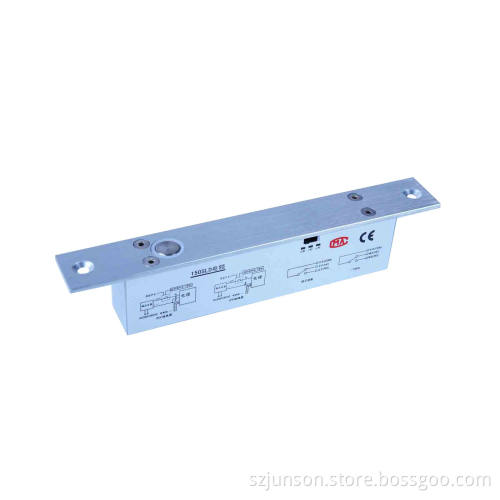

Electronic Door Lock (JS-1503BSLD)

Low Temperature Electric bolt with Narrow Panel JS-1503BSLD


Parameters

Fail Secure: Lock when power off
Lock size: 200Lx28Wx39H(mm)

Magnet plate size: 200Lx28Wx3H(mm)
Lock pin: 12mmDIA, stainless steel 15mm throw
Voltage: DC12V(DC24V)
Start Current: 12VDC/1.3A; 24VDC/0.5A

Standby Current: 12VDC/0.08A; 24VDC/0.05A
Solid lock pin: Polishing housing, 1000Kg Holding Force
Suitable For: Narrow frame of wood door, metal door, glass door
Signal Output: 1.Door Status sensor, NC/COM

2. Lock Status sensor, NC/COM

These 2 senores can be used together or alone as option.

Auto relock jumper: Adjustable (0~6S)

Surface Temp: Low Temperature
Induction Distance: 8mm
Operating temp: -10~+25 degree (14-131F)
Operating Humidity: 0~90%(non-condensing)
Face place material: High Aluminum, Carrulous Line Finished
Weight: 0.7kg
Standard Packing: 10PCS.

Carton size: 53Lx30Wx14H(cm)

Feature
Low Temperature, safe and Durable
Low Power, Environmental Protection
Special Designed Solenoid for Strength and Long Life with 500000 Operations
MOV Provides Reverse Current Protection
Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt
CE Certificate by European Union, MA China Public Security office
Photoelectricity Control, Low Temperature,

A: The Low Electric Current Changed in the Twinkling of eyes;

B: Location on the Door is not Straight, The Door withstands the bolt, The low temperature changing will be achieved also

C: The Photoelectricity Controls Technology, Prevent the Trouble of the Machinery.

We offer many type of door lock, like: Electric bolt lock, electric dead bolt, electric door bolt, electric lock, electronic lock. Magnetic lock and locks
