Product Description

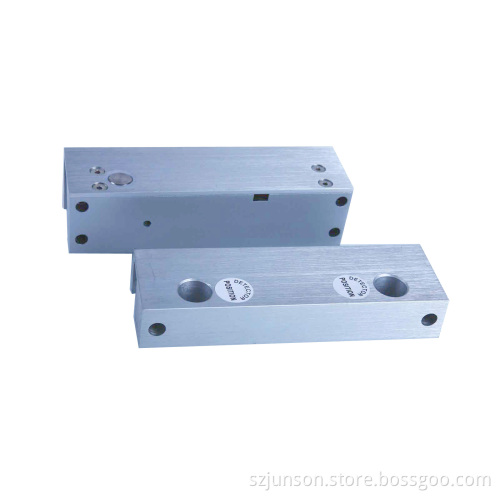

Electric bolt for Fully Frameless Glass Door JS-1502SLD
Electric Drop Bolt with Time Delay (JS-1502SLD)

Features:

1. This electric bolt lock has door and lock status sensor, NC/COM these 2 senores can be used together or alone as option.
2. Auto relock jumper: Adjustable (0~6S)
3. Surface Temp: Low Temperature
4. Induction Distance: 8mm
5. Operating temp: -10~+25degree(14-131F)
6. Operating Humidity: 0~90%(non-condensing)
7. Face place material: High Aluminum, Carrulous Line Finished
8. Fail safe: Unlock when power off

Parameters:

Lock size: 148Lx43Wx39H(mm)
Magnet plate size: 148Lx43Wx24H(mm)
Lock pin: 12.5mmDIA, stainless steel 15mm throw
Voltage: DC12V(DC24V)
Start Current: 12VDC/1.3A; 24VDC/0.5A
Standby Current: 12VDC/0.08A; 24VDC/0.05A
Solid lock pin: Polishing housing, 1000Kg Holding Force
Suitable For: Fully frameless glass door
Signal Output: 1...Door Status sensor, NC/COM
Weight: 1.3kg
Standard Packing: 10PCS.
Carton size: 53Lx30Wx14H(cm)

We produce many type of locks, like Electric drop bolt, Electric dead bolt, Electric drop bolt, Electric bolt, Magnetic lock, Electric lock, Electric strike and other door lock
