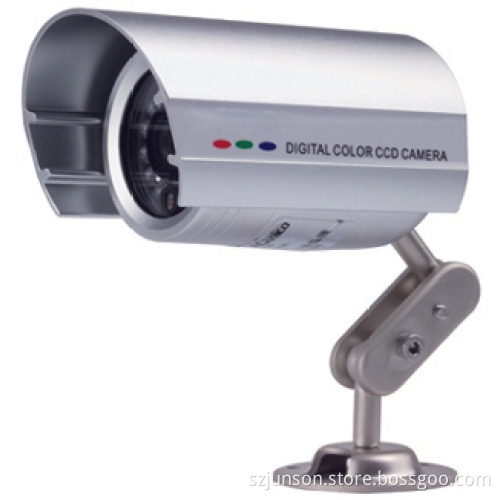

420TV Infrared and Night-Vision Camera

Infrared and Night-Vision Camera 420TVL Resolution

Model: JS-314LY

Specification:

Image sensor: 1/3"Color Sony super HAD II CCD
Effective pixels: PAL: 795(H)× 596(V) NTSC: 811(H)× 508(V)
Horizontal resolution: 420TV Lines
S/n ratio: >48dB
Video output: 1.0Vp-p, 75Ω (BNC)
Minimum illumination: 0Lux / F1.2(IR ON)
IR range: 15 m
Infrared lamp: 12 Φ 5 LED
Lens: 3.6mm/6mm/8mm/fixed focal lens optional
OSD menu: No
Shutter speed: 1/50 to 1/100, 000 second
Gain control: Automatic (0-255)
Back light compensation: Internal
White balance mode: Auto
Camera installation: C/CS type
Required power supply: DC12V/750mA
Working temperature: -10º C~+50º C
Power consumption: 3.6W
