802.11g 54Mbps Wireless LAN PCI Adapter

Products Description:

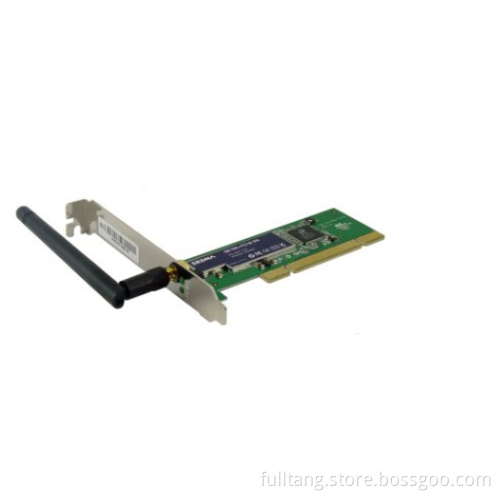

SE-WL-PCI-03-11G is a wireless PCI adapter fully compliant with IEEE802.11g, communicates with any device that compliant with IEEE802.11g, IEEE802.11b, or connect with wired networking through AP.

Features:

IEEE 802.11g, IEEE 802.11b supported, compliant with Wi-Fi
TCP/IP, NDIS3, NDIS4, NetBEUI supported
Two working modes available: Ad Hoc Mode and Infrastructure Mode
Transmission rate up to 54Mbps covers 300m
Network status auto detects and rate auto negotiable
WPA, IEEE802.11x, TKIP, AES supported
PnP supported
Wireless roaming supported



Specifications:


Standard and protocols supportedIEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK
Bus Type32bit PCI 2.1/2.2/2.3
Frequency Range2.4~2.4835GHz
Transmission Rate54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps, 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps
Channels13
Sequence SpreadDSSS(Direct Sequence Spread Spectrum)
Data modulationBPSK, QPSK, CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM)
Transmission typeCCK, OFDM
Transmission DistanceUp to 100m (indoor), up to 300(outdoor)
Antenna Gain2dBi
LED Indicator LINK/ACT(wireless network)
Working EnvironmentWorking temperature: 0º C~40º C;
Store temperature: -20º C~80º C
Working humidity: 10%~95% RH Non-condensing
OS supportedWindows9x/Me/2000/NT/XP/2003/Vista




Package:
SE-WL-PCI-03-11G adapter
User Manual
CD
