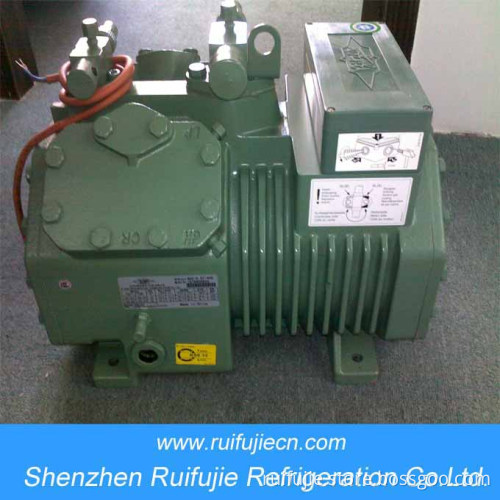

Bitzer Semi-Hermetic Compressor (4CC-6.2Y)

Bitzer Semi-Hermetic Compressor

Based on one technical concept, our semi-hermetic reciprocating compressors cover the entire spectrum of applications of conventional, chlorine-free HFC as well as natural refrigerants. They distinguish themselves by a robust valve plate design, a high quality and wear resistant drive gear, are easy-to-service and offer good speed control at minimum energy requirements as well as extremely smooth running. In addition, they incorporate an efficient, suction gas cooled integrated motor. The OCTAGON series of compressors additionally excels by extremely compact dimensions and even further increased smooth running.

Bitzer compressor is a type of piston compressors. Can be used for R22 and R404



1. Voltage and frequency
380...420/3/50HZ
440...480/3/60HZ

2. There are many models which are 2KC/2HC/2EC/2FC/2CC/4FC/4EC/4DC/4CC/4VCS/4NCS/4PCS/4H/4G/4J/6J/6H/6G/6F/8GC/8FC

3. For R404a and R22:
ModelPowerCoolingconnectionouter size (mm)installation size(mm)
KW Wair inait outABCab
2HC-2.21.943380Φ 16Φ 10620650560580350
2GC-2.22.233990Φ 16Φ 10620650560580350
2FC-3.22.74820Φ 16Φ 10620650560580350
2EC-3.23.345670Φ 22Φ 12960680470920380
2DC-3.23.886780Φ 22Φ 12960680520920380
2CC-4.24.928350Φ 22Φ 1210606807201020380
4FC-5.25.219640Φ 22Φ 1213007506701260410
4EC-6.26.2311850Φ 28Φ 1213007507701260410
4DC-7.27.7214480Φ 28Φ 1613007508701260410
4CC-9.27.9817500Φ 28Φ 16128071010101000665
4VCS-10.27.9119190Φ 28Φ 16128071010101000665
4TCS12.29.8523150Φ 35Φ 16128071012101000665
4PCS-15.211.227700Φ 35Φ 22128075014601000705
4NCS-20.214.132150Φ 42Φ 22135080014101000755
4H-25.218.142250Φ 54Φ 221150570860800525
4G-30.221.148500Φ 54Φ 221150570852800525
6J-33.223.354700Φ 54Φ 281150570852800525
6H-35.226.763400Φ 54Φ 281050600910800555
6G-40.23172800Φ 54Φ 281050600910800555
6F-50.237.986300Φ 54Φ 3515506008801000550
8GC-60.247.71E+05Φ 76Φ 3515506009501000550
8FC-70.260.51E+05Φ 76Φ 3515506009501000550
