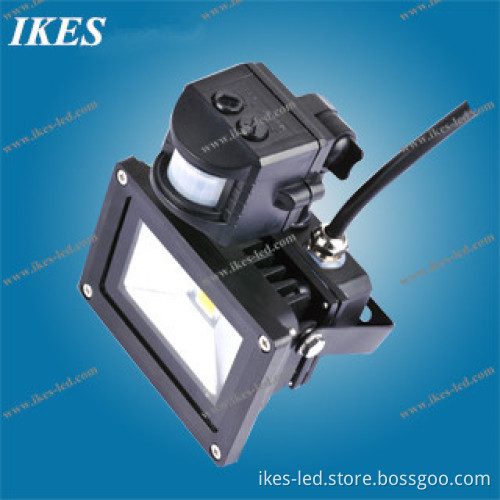

10W LED Flood Light/LED Projector with Sensor

Features:

1.Adopting high power integrated LED, which ensures light is more uniform,light efficiency is higher.

2.Using high transmittance tempered glass,transimittance93%

3.Complying with ROHS,absolutely not contain mercury or other harmful substance

4.Lifespan of whole tube over 35000 hours

5.LED lamp turn on automatically when the body through the sensor area.

6.Can identify day and night automatically, the ambient-light can be selected to work at night automatically and stop in the daytime.

7.Time-delay can be adjusted vary to the place.

Function:

• Can identify day and night automatically, the ambient-light can be selected, so it works at night automatically and stop in the daytime.
• Time-delay can be adjusted vary to the place.
• It mainly be used fitting with halogen lamp, but it also can be used alone.

Applications:

 Suitable for workshop, factory, garden, road and other automatic control occasion.

Installation:

1. when installing connect line according to the right fig.

N --white

L-- black

Red ( be from infrared sensor)
connect white and black with power
connect white and red with load for lamp, we have already connected the controller wire.

2. AC INPUT cable

Brown: Line

Blue: Neutral

Yellow-Green : Ground

Test:
1. After installation, please turn anti-clock wise the time knob(TIME) to the minimum and turn clockwise the light-control knob to the end (DAYLIGHT) before you switch on the power.
2. switch on the power, the light can be on after 30sec. After it turns off, make it to sense after 5~10 sec.
3. If all are under good condition, with time adjustment knob the light period can be adjusted according to your desire, with light-control knob ambient-light can be adjusted.
