EQ32 15A

EQ32 15A
Standards: GB/T14860 & Q/MM163-2013

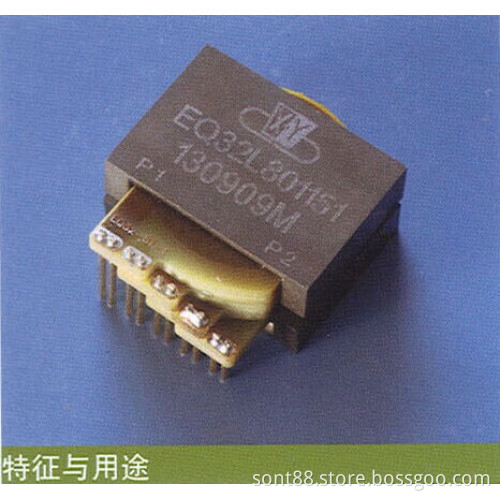

Features & Application:
1. Use EQ32 planar magnetic core, mutillayer PCB technique;
2. Use for DC/DC module power, max output rated current 15A RMS;
3. Working frequency: 100K~300K;
4. Outline dimension: 35*32.5*15.7mm (MAX);
5. Insulation and withstand voltage between magnetic: 0.5KVDC;
6. Working temperature range: -40 C ~ 85 C;
7. Weight: <=75g

EE 18  L 150 351
  1    2   3    4    5

1: Magnetic serials, eg: EE, EI, ER, EL, PQ
2: Magnetic core size, eg: 18, 22, 25, 43...
3. L= inductance
4. Inductance 150mean 1.5uH*100=1.5uH
5. Max current 351mean 3.5A*101=35A
