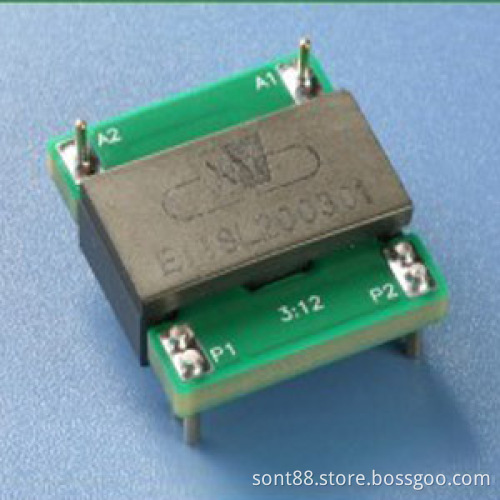

Ei18 30A Planar Inductor

EI18 30A PLANAR INDUCTOR
standards:GB/T14860 & Q/MM163-2013


Features & Application:
1. Use EI18 planar magnetic core ,mutillayer PCB technique;
2. Use for DC/DC module power ,max output rated current 30A RMS ;
3. working frequency: 200K~500K;
4. outline dimension  :20.4*18*8mm (MAX);
5.with accessory power supply and feedback winding;
6.insulation and withstand voltage between magnetic :1.5KVDC;
7.Working temperature range : -40 C ~ 85 C ;
8. weight :<=9.5g

EE  18  L   150   351
  1    2    3     4       5

1:magnetic serials ,eg: EE, EI ,ER, EL, PQ
2: magnetic core size ,eg: 18,22,25,43...
3. L= inductance
4. Inductance  150mean 1.5uH*10⁰=1.5uH
5.max current  351mean 3.5A*10¹=35A
