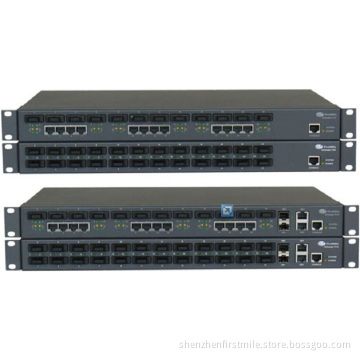

24 full gigabit SFP optical fiber ethernet switch

The OnAccess M8224 series are full Gigabit managed optical fiber Ethernet switches which can be widely applied in the networks of campuses, government bodies, carriers and large or medium enterprises, or on the aggregation layer of the small or medium networks. It can meet the network's requirements for bandwidth and network security. All the optic Ethernet interfaces support 100M/1000M dual rate. The network operator can deploy OnAccess M8224 today and get ready for next generation access. During network upgrade, there is no need to revisit the customer and change the equipment.

Item
Ports		Uplink 2x COMBO (2x10/100/1000BaseTX +2x 100BaseFX/1000BaseX SFP slots) Downlink 24x100BaseFX/1000BaseX SFP slots Console RS232
Wire speed switching		Store and forward mode: Non-blocking switching
Wire speed switching		Switch fabric:54Gbps
Jumbo Frame		Support up to 9216 byte Jumbo Frame
MAC address		Support 8K MAC address
		Support MAC address black hole
		Support MAC address learning limit
VLAN		Support port-based VLAN
		Support 802.1Q VLAN (4K VLANs)
		Support protocol-based VLAN
		Support GVRP/GARP (Generic VLAN Registration Protocol)
		Support MVR(Multicast VLAN Registration )
		Support VLAN isolation (16)
		Support VLAN translation
		Support VLAN VPN (QinQ)
Link aggregation		Support LACP
		Support static link aggregation
		Support up to 16 aggregation groups and up to 8 ports per group
Flow Control		Support 802.3x in full duplex mode
Flow Control		Support back pressure in half duplex mode
LLDP		Discovery remote base on link layer
Port Loopback Detection(LBD)		Auto shutdown individual ports upon fault signals
Port Loopback Detection(LBD)		Auto-detection interval can be set
STP/RSTP/MSTP		Support STP/RSTP, Support MSTP
Multicast		Support IGMP snooping v1/v2/v3
		Support MVR(Multicast VLAN Registration)
		Support static multicast groups
DHCP		Support DHCP client
		Support DHCP snooping
		Support DHCP relay option82
Security feature		Support hierarchical management and password protection of users
		Support IEEE 802.1X authentication
		Support centralized MAC address based authentication
		Support guest VLAN
		Support port isolation
		Support IP + MAC + port binding
		Support ARP detection
		Support IP source check
QoS/ACL	ACL	Support traffic classification based on source MAC address, destination MAC address, source IP address, destination IP address, Layer 4 port, protocol type, VLAN, and so on
	QoS	Flow-based traffic rate limit
		Support flow-based priority tag
		Flow-based redirection of packets to another port
		Flow-based traffic statistics
		Support SP/WRR/SP+WRR queue scheduling
		Support flexible port mirroring, up to 4 port mirroring groups, monitoring network traffic by sending copies of all incoming and outgoing packets from the mirroring ports to a monitoring port.
		Support port traffic shaping
		Support congestion avoidance and drop policies
Management and maintenance		Support locally / remotely management via CLI,SNMP,Web and Telnet, Console port
		Support Simple Network Management Protocol (SNMP) v1/v2/v3
		Support Remote Monitoring (RMON) 1/2/3/9 groups of MIBs
		Support OnAccess View EMS
		Support system log, hierarchical alarms
		Support SSH v2
		Support power supply/fans/temperature of IC/ status detection and alarms
		Support Debugging Information Output
		Support remote maintenance through Telnet
		Support FirstMile's embedded EMS-OnAccess View

Dimensions(HxWxD)	44x440x267
Weight	4.5kg
Power supply	Redundant dual inputs (AC or DC)
	AC voltage range: 90 VAC to 264 VAC; 50 Hz or 60 Hz
	DC voltage range: -36 V to -72 V
Power consumption	no more than 45w
Predicted MTBF	65,000 hrs (25°C)
Operating Temp.	0°C to 60°C
Storage Temp.	-10°C to 70°C
Relative humidity	5% to 90% (non-condensing)

Available Model	Power Configuration
OnAccess M8224	SA SD AA DD AD	Single AC power Single DC power Dual AC power Dual DC power AC power+DC power
