P2p Olt up to 4*10g Ports Optical Fiber Switch

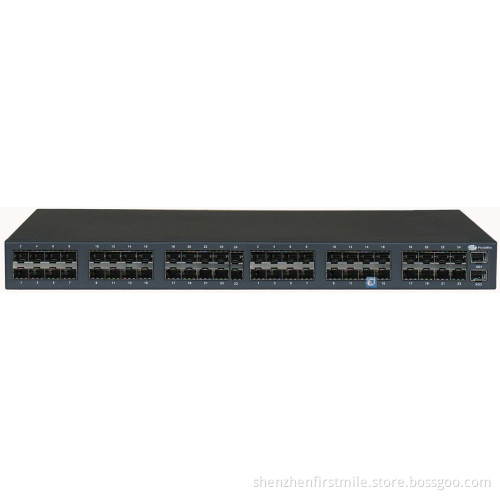

OnAccess M8350 2 10G + 48 Gigabit Ports Managed SFP Based Fiber Optic Ethernet Switch


8K address table for auto-learned unicast or static unicast/multicast addresses
Jumbo frame of up to 9216 bytes
802.1p, Port and DiffServ based QoS package classification with 4 priority queues. Supports queue mapping and DSCP mapping.
4K 802.1Q based VLAN
Port based VLAN
16 Protocol based VLAN
MAC based VLAN
Virtual Private Network(VPN)
GARP/GVRP
16 trunk groups of up to 8 member ports with flexible load distribution control and fail-over function
Manual, static and dynamic port aggregation
802.1d Spanning Tree Protocol, 802.1w Rapid Spanning Tree Protocol and 802.1s Multiple Spanning Tree Protocol.
By-port egress, ingress and bi-direction rate control
Loopback detection function (LBD)
Multi-combination of MAC address, IP and Port binding
Static and dynamic MAC addressing
Blackhole MAC address filtering
IGMP Snooping
Multicast VLAN Registration (MVR)
Link Layer Discovery Protocol (LLDP)
Storm Control for any combination of multicast, broadcast and DLF traffic
DHCP Snooping
Dynamic ARP Inspection (DAI)
DHCP and ARP rate limit
Max MAC addresses learned numbers limited on port
Port isolate
16 isolated VLANs
Access Control Lists (ACL)
Secure Shell (SSH) v2.0
802.1x Port-based access control and MAC authentication
User configurable port mirroring supports 4 mirroring groups of ingress/egress/both data flow monitoring on one or more ports.
User account assignable to one of the three access privilege levels
On-line firmware upgrade
Configuration file backup and restore
Dual power supply option provides power redundancy with status monitoring features.
Fan, temperature, CPU and memory status monitoring features.
Add your features here (we do customization, please contact us for details).
