Multi-Port Gigabit Ethernet Multiplexer

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong
Payment Type:	L/C, T/T, Paypal, Money Gram, Western Union

Product Description

Multi-Port Gigabit Ethernet Multiplexer

Feature:

Two SFP+ based XG fiber ports and twelve 100BASE-FX/1000BASE-X SFP ports allowing service provider to aggregate 12 customer ports or channels into one XG link with full APS function, less than 50ms switch over time
Support casecading, up to 16 chassis managed by single management entry with one master unit plus 15 cascaded slave units
In-band network management (OAM) communication with IEEE802.3ah,IEEE802.1ag and ITU-T Y.1731
Per port based independent egress and ingress rate management control
Per port based programmable link fault pass-through (LFP) or remote fault detection (RFD) function
Remote power on / off detection with dying gasp alarm
Remote loopback capability for link integrity test
Dual hot-swappable power supplies
Hot-swappable fan module with monitoring and alarm features
Network Management: SNMP, Web-based HTTP and Telnet

Physic

1.Dimension: 19-inch rack-mount wide, 1.0U high
2,Weight: 5Kg
3.Operating temperature: 0 ºC ~ 50 ºC
4.Storage temperature: -25 ºC ~ 85 ºC
5.Humidity: 5% ~ 95% RH Non-condensing
6.Power Supply Options:AC90~264V/1.2A max, 50/60Hz, or DC36~72V/2A
7.Power Consumption: ~35W

Applification:

Multi-Port Gigabit Ethernet Multiplexer

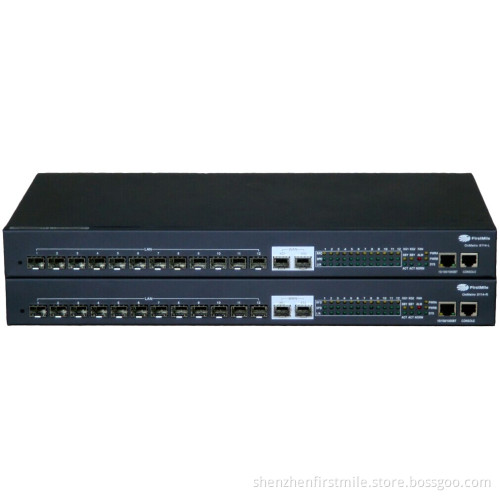

The OnMetro 8114 is a high performance, cost-effective, carrier-grade manageable 12 Gigabit to one 10 Gigabit Ethernet multiplexer system, which is intended for applications of enterprise leased line and mobile backhaul or to increase the channel capacity of legacy fiber andCWDM/DWDM infrastructures over 10 times.
It supports two SFP+ based XG Automatic Protection Switch (APS) links
between local and remote multiplexer to offer 12 truly isolated and protocol independent SFP based GE links over the high reliable APS fiber pair.
With industry advanced features such as Link Fault Pass-Through (LFP) or Remote Fault Detection (RFD), and Dying Gasp Alarm, it makes more efficient troubleshooting and less on-site maintenance. The OnMetro 8114 provides remote loopback and in-band IEEE802.3ah, IEEE802.1ag, ITU-T Y.1731 OAM capabilities.

Models	Discriptions	Power supplies
OnMetro 8114L	Headend ( use in pair)	AC: Single AC AA: Dual AC DC: Single DC DD: Dual DC
OnMetro 8114R	Remote end ( use in pair)
OnMetro 8114S	standalone
