2014 A Grade High Efficiency 1mono-Crystalline Solar Cell

Quick Details

• Place of Origin: Taiwan
• Brand Name: Motech
• Model Number: TM-156M6
• Material: Monocrystalline Silicon
• Size: 156x156mm
• Number of Cells: 1
• Max. Power: 4.4
• Color: Deep blue
• Grade: A grade & B grade
• Warranty: 25 years
• Efficiency: 17%--18.4%
• Bus bar: 2 bus bar

Packaging & Delivery

Specifications

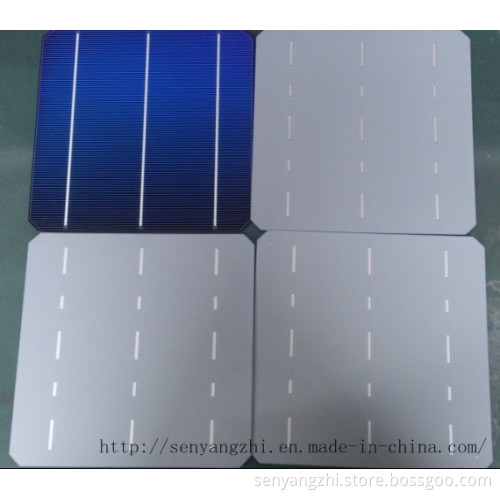

156x156mm ( 6x6 inch) mono-crystalline PV solar cell,2 bus bar,3 bus bar

Dimension:     156mm x 156mm

Diagonal:        200mm (round chamfers)

Front:              Anisotropically texturized surface and dark silicon nitride

                        anti-reflection coating

                       1.9mm silver bus bars

Back:              Full-surface aluminum back-surface field

                       4.0mm (silver / aluminum) continuous soldering pads

Features

1.High conversion efficiencies resulting in superior power output performance.

2.Outstanding power output even in low light or high temperature conditions

3.Optimized design for ease of soldering and lamination

4.Long-term stability,reliability and performance

5.Low breakage rate

6.Color uniformity

Production and Quality Control

1.Precision cell efficiency sorting procedures

2.Stringent criteria for color uniformity and appearance

3.Reverse current and shunt resistance screening

4. ISO9001,ISO14001 and OHSAS 18001 etc. Certificated
