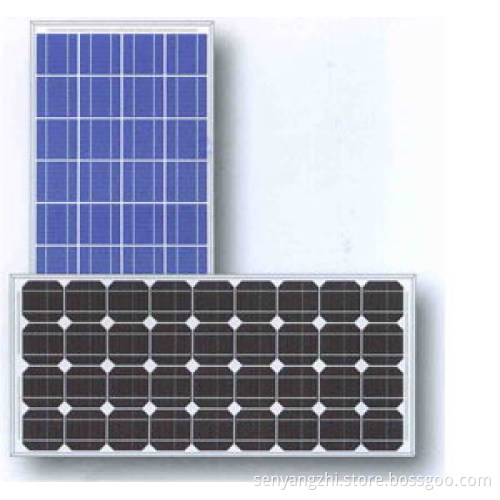

High Efficiency 255W Mono Solar Panel (SF255)

Quick Details
Place of Origin: Shenzhen China (Mainland) Brand Name: SYZ Model Number: SF-255
Material: Monocrystalline Silicon Size: 1650*990*40mm Number of Cells: 60PCS
Max. Power: 255W

Efficiency
1. Low voltage-temperature coefficient allows higher power output at high-temperature condition.
2. High efficient, high reliable solar cells ensure our product output stability.

Benefits
1. Manufactured in an ISO9001: 2008 certified plant
2. High efficiency, high safety, high reliability
3. Output power tolerance of +/-3%

Warranty
1.5-years limited warranty on materials and workmanship
2.25-years limited warranty on power output: 10 years/90%, 25 years/80%

Electrical Parameters
Team detail 1 working conditon detail 2
Cell 156' 156mm max system votage 1000 votage
Weight(kg) 19.5 operating temp -40° C~+85° C
Cable Length(mm) ≥ 1000 Static loading ≥ 2400PA
Dimensions(LxWxH)(mm) 1650*990*40 Maximum Series Fuse (A) 13
No. Of cells and connections60(10X6) NOCT 4 5± 2° C
Cable cross section size 4mm2 Grounding conductivity ≤ 0.1Ω
No. Of diodes 6 Application Class Class A
Packing configuration 25PCS/carton Insulation Resistance ≥ 100MΩ
