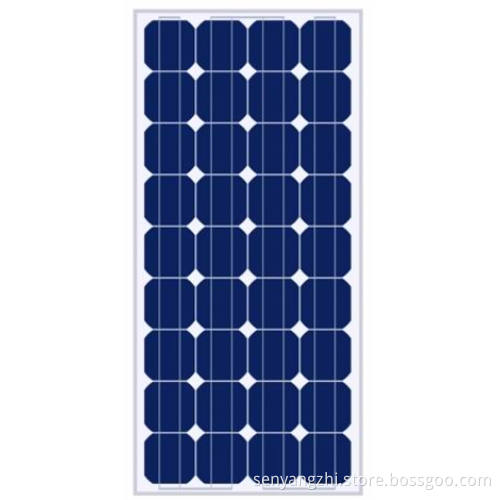

Monocrystalline 70W Solar Panel Low Price (SF-70)

Specifications
Solar panel price.
1. Comepetitive price 70W Mono solar panel
2. Broad spectrum
3. Certification: TUV IEC CE ISO
Solar panel price
We supply Solar panel price

Technical parameter(with tolerance 0~3%)
Maximum Power70W
Optimum Power Voltage(Vmp)18.00V
Optimum Operating Current(Imp)4.16A
Open Circuit Voltage(Voc)21.78V
Short Circuit Current(Isc)4.47A

Mechanical Characteristics
Cell TypeMonocrystalline 125X125mm
No. Of Cell36PCS. /(4X9)
Dimensions1200X550X35mm
Weight8.0kg
Frame Aluminium Alloy
Junction boxIP67 Rated

Temperature and Coefficients
Operating Temperature(° C) -40° C ~ + 90° C
Maximum System Voltage1000V
Temperature Coefficients of Pmax-0.45%± 0.05%/° C
Temperature Coefficients of Voc-0.3% ± 0.02%/° C
Temperature Coefficients of Isc0.04% ± 0.015%/° C
Nominal Operationg Cell Temperature (NOCT)46± 2° C

Quality guarantee
1) Industry leading power output warranty(10 years/90%, 25years/80%)
2) 10 years' warranty on product-materials and processing technology
3) ISO9001: 2000(Quality System Management) certified factory
