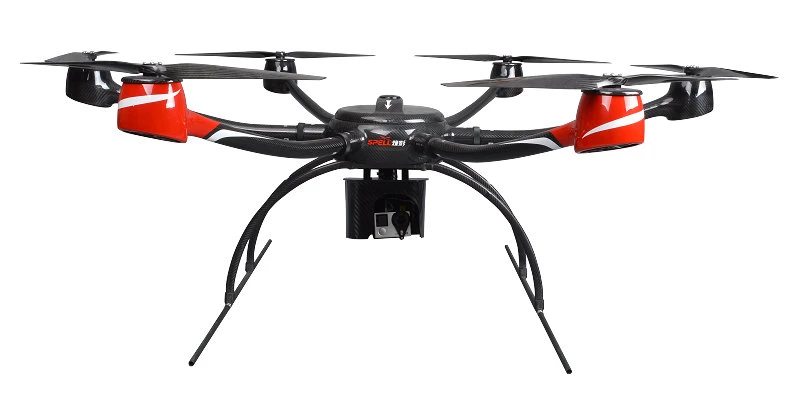

Uav Autopilot Drone with HD Zoom Camera for Various Use

• Carbon fiber integrated molding with high rigidity and light weight; supports more than 65 minutes flight time with 0.5KG Gopro Camera.
• Innovative upturned arm design for flying stability and strength, ensuring wind tolerance up to 14 m/s.
• Able to fly at elevation of 5000m (16500 ft).
• Full HD 1080i/P real time video transmission.
• Detachable structure, get ready to fly within 5 minutes.
• Highly integrated rainproof gimbal unit with good rain performance.
• Intelligent flying control system, supports manual precision control and autonomous flight.

• Technical Parameters
  Diagonal wheelbase	1600 mm
  Standard take-off weight	9.8 kg
  Max take-off weight	14.4 kg
  Max payload weight	≥5 kg
  Flight time	≥65 min (@9.8kg)
  Wind loading rating	14 m/s
  Max flight speed	15 m/s
  Relative flight speed	1000 m
  Max working altitude	5000 m
  GPS position accuracy	vertical: ±1.5 m horizontal: ±2 m

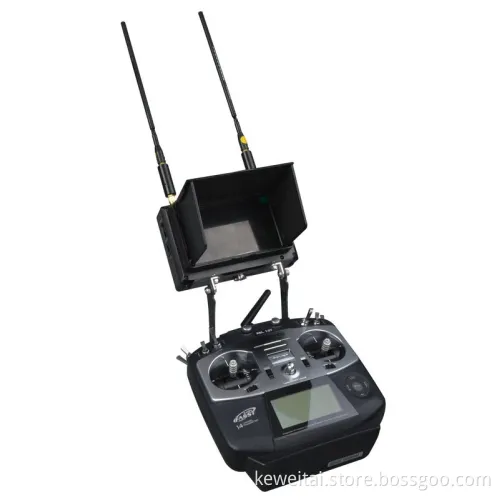

  Remote control distance	7 km(up to the environment)

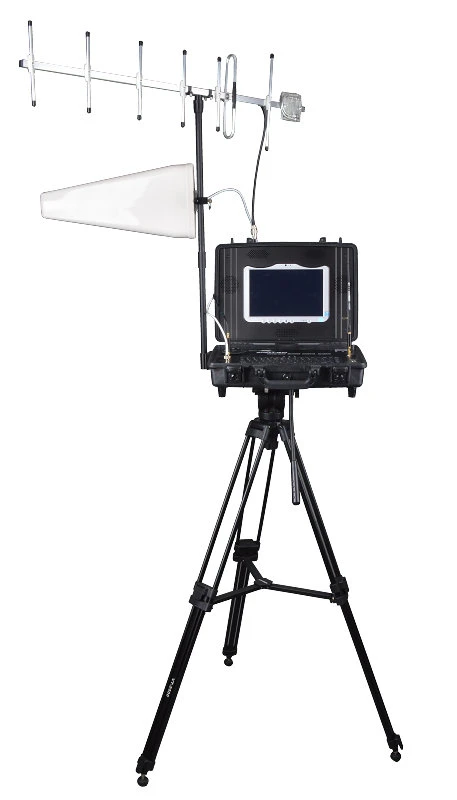

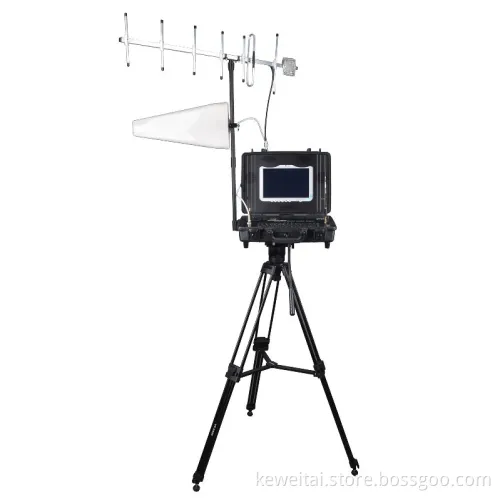

  GS control distance	10 km

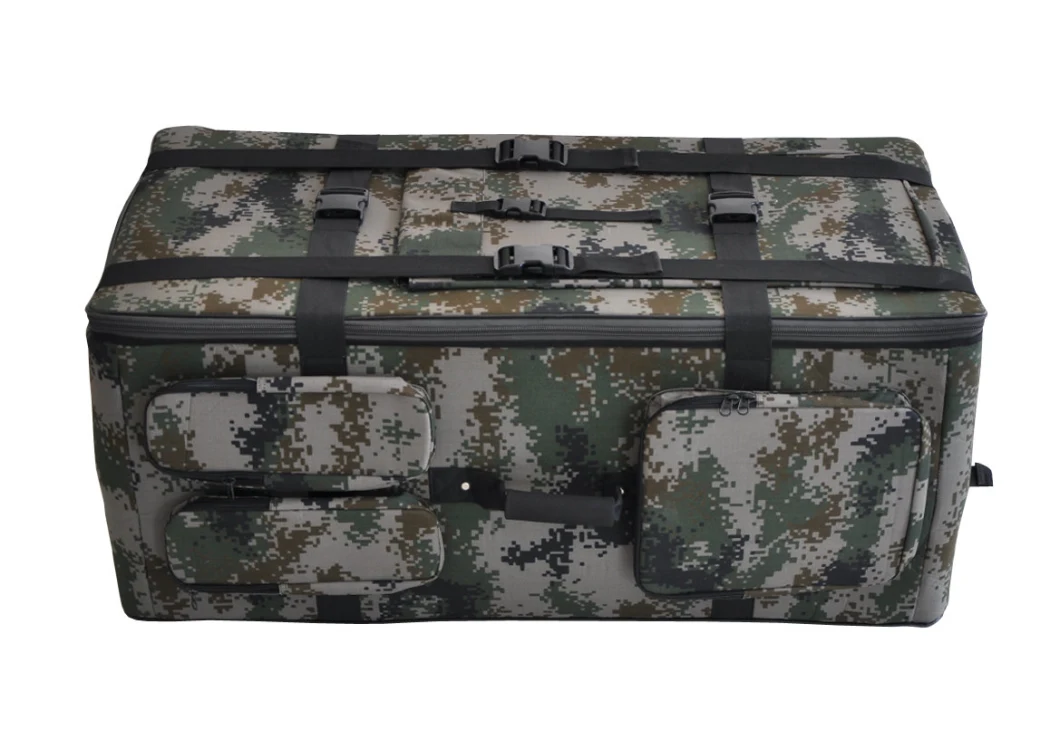

  Center Frame Packing Case Dimensions	1150 x 440 x 500 mm

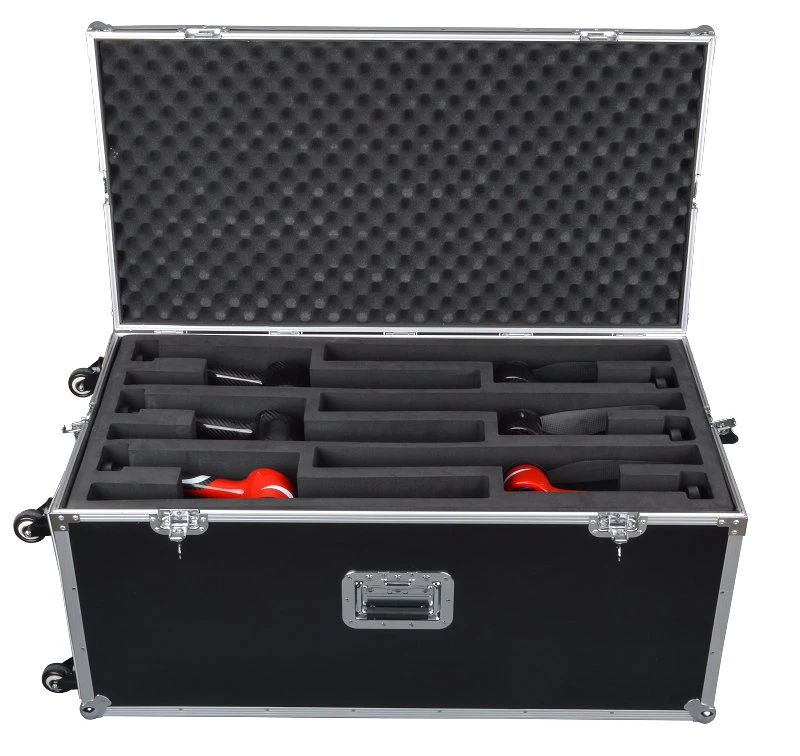

  Frame Arm Packing Case Dimensions	1120 x 540 x 380 mm

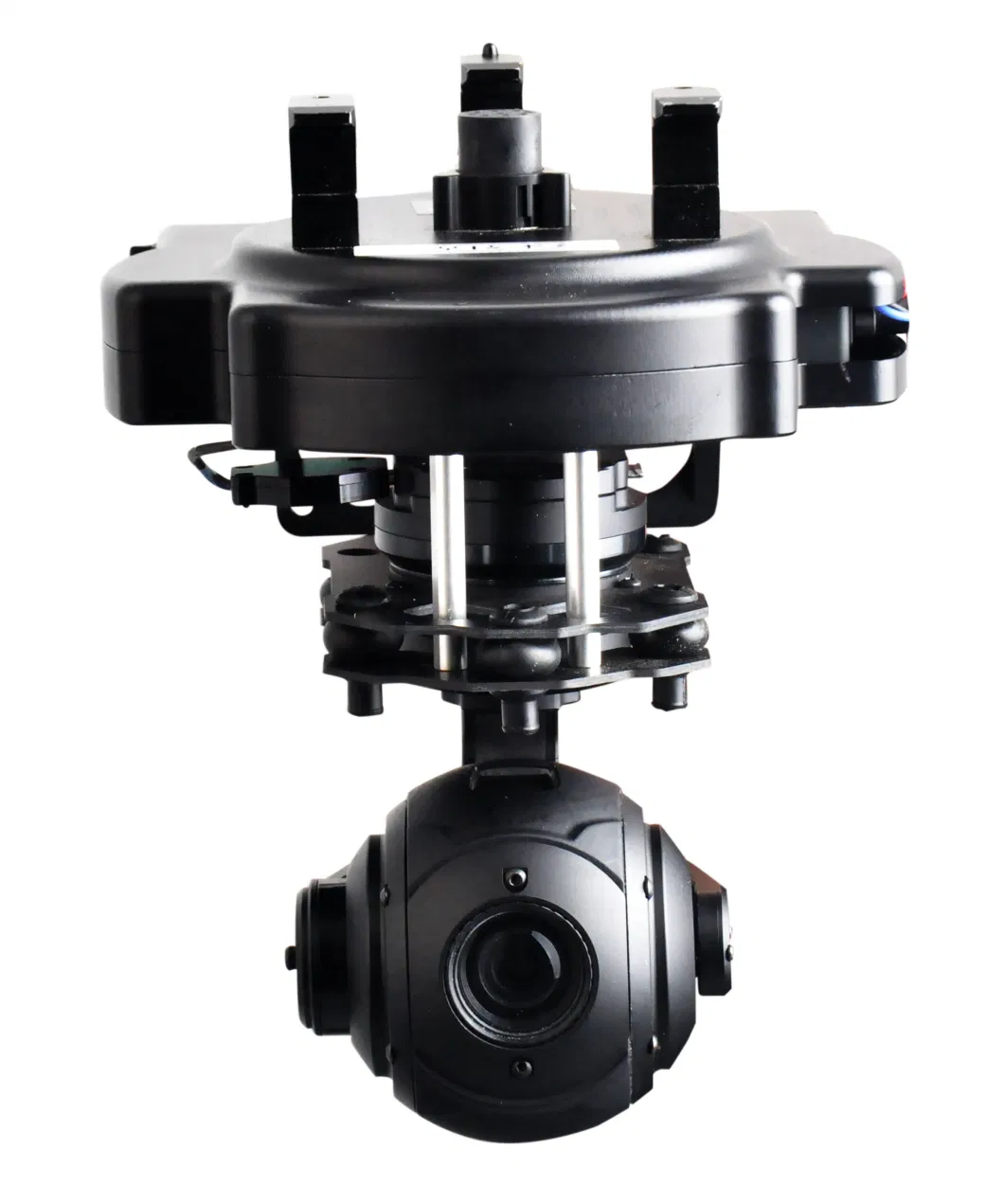

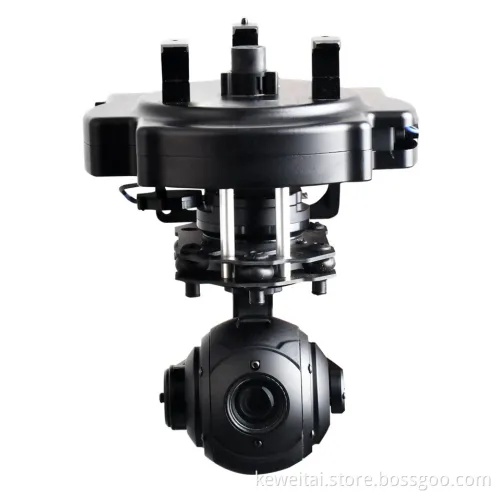

Tenfold Times HD Optical Zoom camera

Parameter name	Parameter index
Working voltage	DC 12±0.5V
Working current	250mA
Work environment temp	-20ºC~50ºC
Controllable rotational range	pitch angle: -100~+45°   Pointing: -240~+240°
Posture control accuracy	±0.02°
Sensor	4 mega-pixel camera( Effective pixel) 1/3 colorful CMOS 4( 2688*1520 pixel)
Len	10 times optical zoom
Quick focus	Focus time<1.5 s
Video storage mode	MOV
Transmitter frequency	328~352MHz/ 560~700MHz( Customizable)
Image clearness	HD1080i/p
Image delay	Lowest 260ms
Storage card	Max support 32G
Weight	≤8kg
Dimension	154mm*154mm*195mm
