Factory Direct Selling Drone Jammer Mainly for Dji

Factory Direct Selling Drone Jammer Mainly for Dji

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

KWT-FZQ

Work Frequency Range MHz 3

5725 MHz to 5852MHz

Dimension

1323*403*341

out of Band Rejection

<-36dBm@30~1000MHz <-30dBm@>=1GHz

Output Power

40dBm@1550~1620MHz 37dBm@2400~2483MHz

Transport Package

Professional Design Packing

Specification

1323mm; 403mm; 341 mm

Trademark

ALLTECH

Origin

China

Product Description

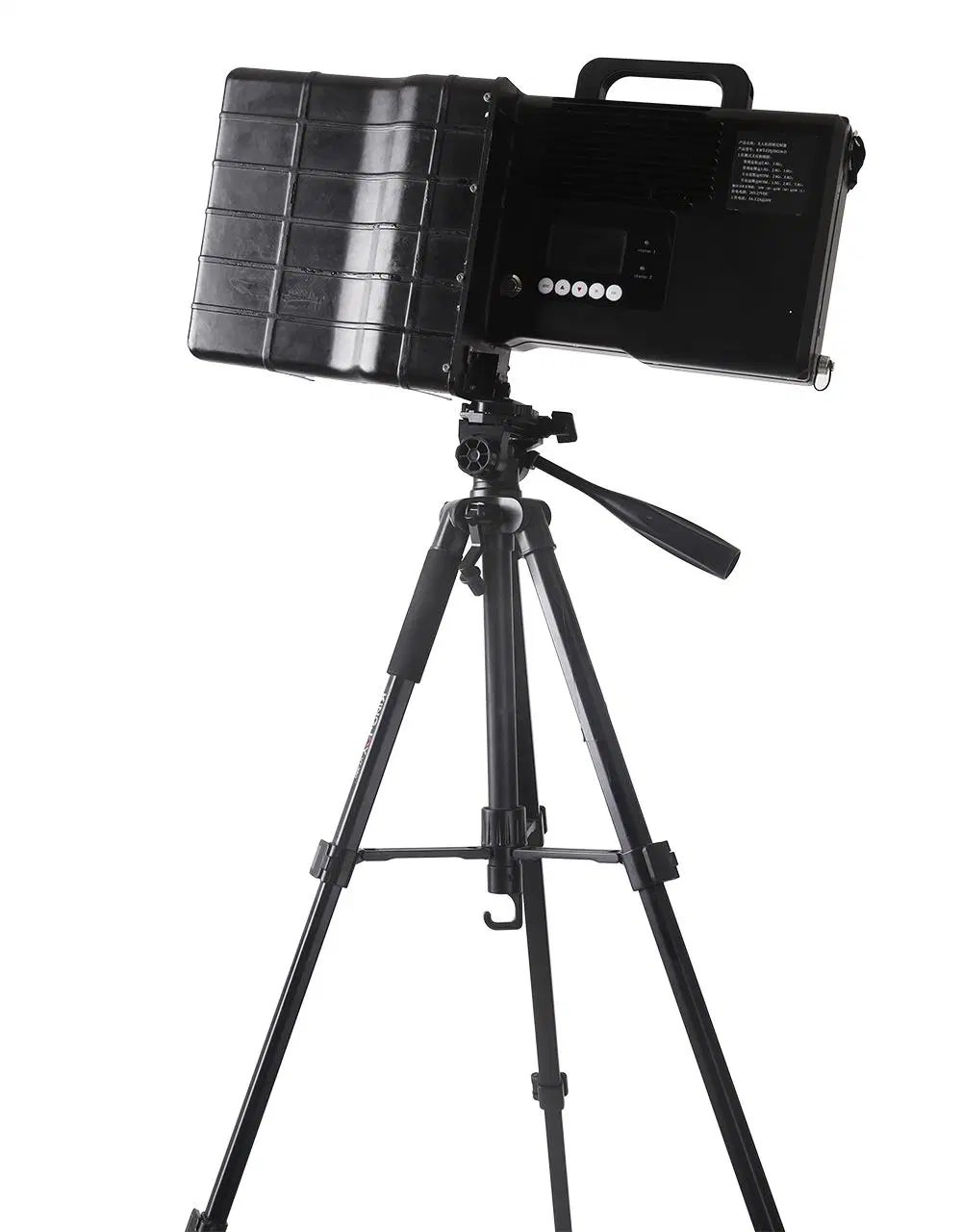

Tri-band Anti Drone KWT-FZQ/DG10-A

Anti drone equipment is a kind of multiband device which sends high-power electromagnetic wave that used to interfere with UAV flight and force the remote low-altitude drone to drop, fly to home place or to land stably. By triggering the equipment, it disturbs the GPS location and breaks the video transmission control link of UAV instantly to achieve the effective control of "Unapproved fly". Its portable gun all-in-one design with robust strength and fast use features make its easy start by one triggering after battery assembly. Multi antennas and multi-bands frequency works simultaneous in the front end of gun, which enables the effective control range more than 1000 meters. The tripod makes longtime watching much easier, which facilitates it popular in such no-fly zones as airport, prison and other specialf areas and so on. What is more, it is very convenient to guarantee the activities going safely and orderly in the important security areas and urban management sites.

Functions and features

Full range cover within three frequency section and high power transmission helps to achieve the ideal effects.
Fast trigger, easy use and daughter switch design make control more ease and comfort.
Dual lithium batteries for power supply last work time more longer.
The strong internal line connector and external fuses port make the whole vehicle and component parts fastened securely.
All aluminum alloy case body design and glass fiber material for antenna cover make its appearance more light and fast.

Technical parameters

SN	Parameter name:		Parameter index record:
1	Power supply	Work voltage V	DC13V~16.8V
2		Work current A	≤9A@DC14.8V
3		Work time	≥1.5h
4	Radio Frequency	Work frequency range MHz	(1550±5) MHz~(1620±5)MHz (2400±5) MHz~(2483±5)MHz (5725±5) MHz~(5852±5)MHz
5		Output power dBm	40dBm@1550~1620MHz(±1dB)
6			37dBm@2400~2483MHz(±1dB)
7			37dBm@5725~5852MHz(±1dB)
8		Out of band rejection	<-36dBm@30~1000MHz <-30dBm@≥1GHz
9	Specification &environment	Weight	4.8kg±0.2kg(Mainframe +battery) 0.6kg±0.1kg(sighting telescope)
10		Dimension	1323mm×403mm×341 mm(with battery and antenna)
11		Work environment humidity	≥95%
12		Work temperature	-25ºC~55ºC
13		Storage temperature	-40ºC~70ºC

Appearance dimension :(mm)L×W×H;
1323mm×403mm×341 mm
Weight(Kg):4.7kg±0.2kg(mainframe + battery)
0.6kg±0.1kg(sighting telescope)

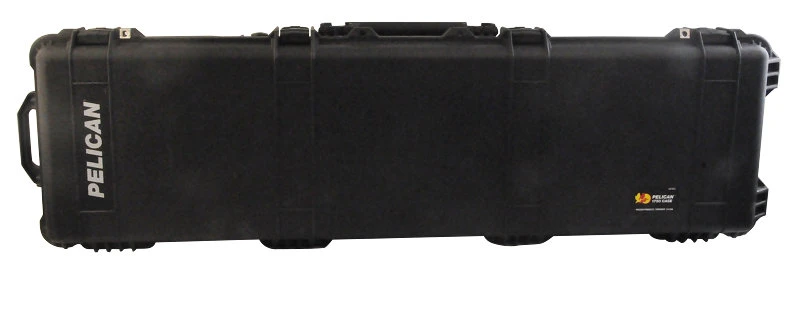

Package:

Our company advantages :

1 .Professional R&D teams, domestic and overseas sales personnel and after-sales service.
2. Headquarter based in Shenzhen with 13 offices around China.
3. Three production regions for uav, wirelss mobile video transmission equips and carbon fiber material.
4. AOPA pilot training school in Shenzhen.
5. Good after sales service, satisfy your customized needs.
6. Manufacturer flexible selling: whole drone, drone frame, drone motor& propellers; All kinds of Ttansmitter and reciever.
