Cofdm Wireless Mini Video Transmitter

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

MV2025TWSE/TWLE

Power Output

200/500MW

Modulation

Qpsk, 16qam, 64qam

Oscillator Circuit

LC or Crystal Oscillator

Transport Package

Carton

Specification

SGS

Trademark

ALLTECH

Origin

Shenzhen, China

Production Capacity

5000pieces/Year

Product Description

System Introduction
The COFDM mini transmitter (MV2025 TWLE) is a new concept in remote surveillance, designed specially to meet the special requirements of covert missions. The equipment is highly integrated and can realize wireless video transmission in mobile and NLOS (Non line-of-sight) conditions. With professional clothes and camera, it can be used in public security bureau or security department to finish covert missions. The transmission range can be up to 30km in LOS (line-of-sight) condition.

Transmitter Features
COFDM modulation, stable transmission
Transmission security by encryption of AES128 bit/ ALLTECH Basic Scrambling
MPEG-2 video compression
High capacity of Lithium battery for power supply
Modular design and highly integrated
Adjustable working frequency
High strength aluminum enclosure, dustproof, waterproof and shockproof
NLOS (Non line-of-sight) transmission.
The transmission range is 20Km in LOS (line-of-sight) condition
Good transmission with high definition video and stereo audio

Product Application

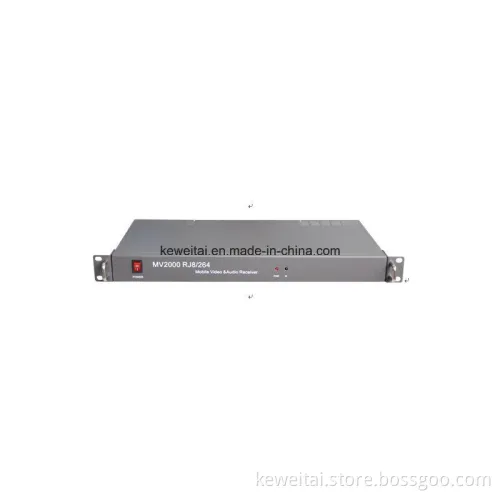

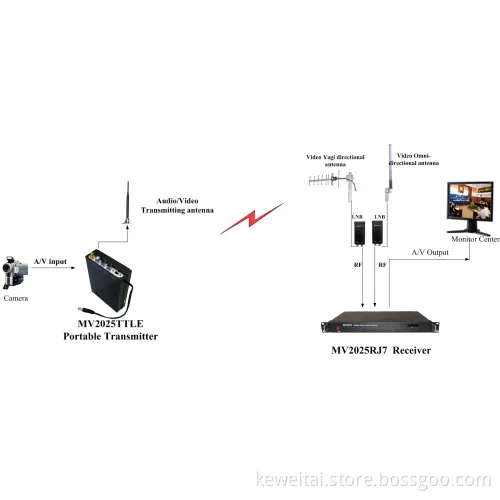

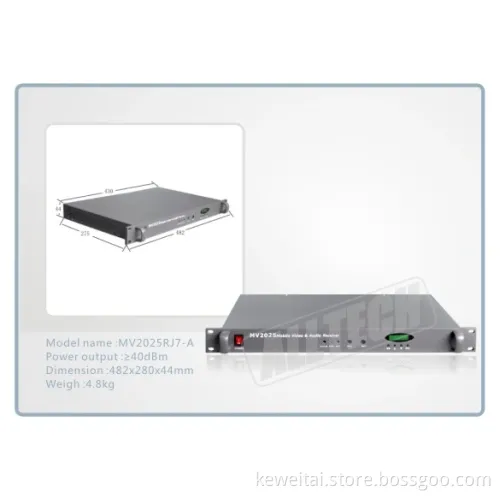

By using a camera, the first responder can get live scenes. Then the mini transmitter transmits real-time video to the receiving center. In the receiving center we use a rack mount receiver which can be installed in the van/vehicle to realize LOS / NLOS (non line-of-sight) condition

Power Supply
Power supply interface	Standard interface
Power supply	Combined transmitter: DC14.8V Mini video transmitter: DC7.8V
Video Transmission
Frequency output range		300MHz~1.2GHz or user customized
RF bandwidth MHz		6/7/8MHz or 1.25/2.5MHz
Power output		200mW
C/N		≥28dB@23dBm
SHG		>52dBc
Modulation		COFDM
Video encoding		MPEG-2/MPEG-4
Encryption		AES/ALLTECH Basic scrambling
Constellation		QPSK/16QAM @ 1.25/2.5MHz QPSK/16QAM/64QAM @ 6/7/8MHz
FEC		1/3, 2/3@ 1.25/2.5MHz 1/2, 2/3, 3/4, 5/6, 7/8 @ 6/7/8MHz
Carrier		2K
GUI		1/8, 1/16 @ 1.25/2.5MHz 1/4, 1/8, 1/16, 1/32 @ 6/7/8MHz
Video input level		1~1.2Vp-p@75Ω
Video input format		PAL/NTSC
Video resolution		720x576(PAL) 720x480(NTSC)
Video amplitude-frequency characteristic dB		0~4.8MHz	-0.5~1.5
		5.5MHz	-4.0~1.5
Audio input		Left/right channel, stereo
RS232 control interface		Standard RS232 level, 9600, 8, N, 1
RS232 data interface		Standard RS232 level, support 1200~115200
Delay	Less than 60ms
Environment
Working temperature	-25°C~55°C
Storage temperature		-40°C~70°C
Ambient humidity	No less than 95%
Protect standard	Rust protection and shakeproof
Appearance
Dimension	101mm ×81mm ×15mm
Weight	0.28Kg (include battery)
RF interface	Standard SMA
