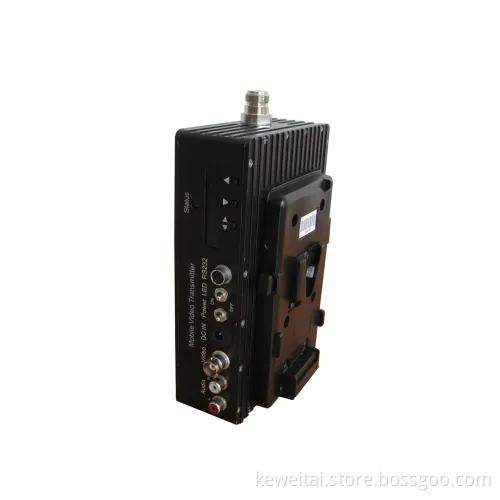

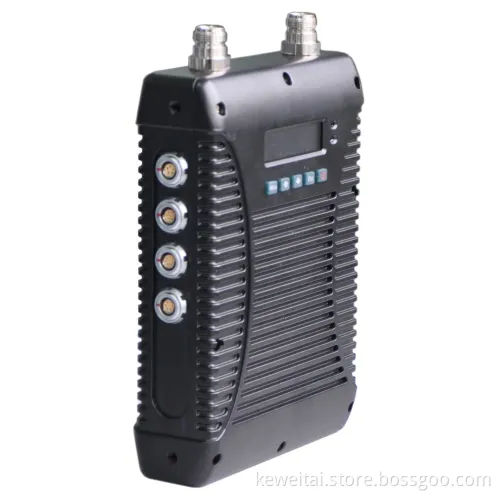

Cofdm Manpack Mobile Video Transmitter with Duplex-Audio

Cofdm Manpack Mobile Video Transmitter with Duplex-Audio

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

MV2000TBHF-A/264

Transport Package

Carton

Specification

SGS

Trademark

ALLTECH

Origin

Shenzhen, China

Production Capacity

5000pieces/Year

Product Description

Functions & Features:
N ABS/AES encryption
N Duplex-audio communication
N Working frequency directly display on panel
N Working bandwidth adjustable range upto 200MHz
N Double lithium batteries with more than 4 hours' lasting time
N One-channel video and two-channel audio (left/right channel) simultaneously input
N Left/right channel audio and unbalanced stereo input
N Transmitter power output adjustable
N GFSK digital audio receiving modulation, narrow receiving bandwidth and high sensitivity
N Good voice quality with internal en/decryption
N Audio frequency adjustable with built-in 64 channels and 24 addresses
N Fully-enclosed waterproof case, dustproof and good impact resistance

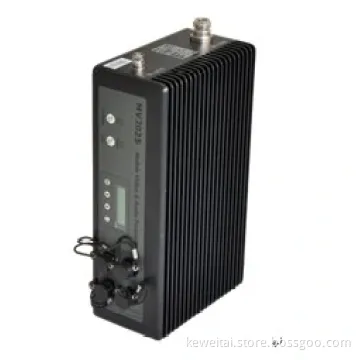

Cofdm Manpack Mobile Video Transmitter with Duplex-Audio

Power Supply
Working voltage V				DC12V~DC16V
Working current A				≤2.8A@DC12.5V
Video Transmission
Frequency output range					300MHz~450MHz,560~760MHz or user customized
RF bandwidth MHz					2MHz (fixed)
Power output					21~36dBm power adjustable with 1dB step
C/N					≥28dB@33dBm
SHG					>52dBc
Encryption					AES/ALLTECH Basic scrambling
Modulation					COFDM
Constellation					QPSK,16QAM,64QAM optional QPSK/16QAM/64QAM @ 6/7/8MHz
FEC					1/2,2/3,3/4,5/6,7/8 optional
Carrier					2K
GUI			1/4, 1/8, 1/16, 1/32 optional
Video encoding			H.264
Video input level			1~1.2Vp-p@75Ω
Video input format			PAL/NTSC
Video resolution			720x576(PAL) 720x480(NTSC)
Video white bar amplitude mV			650~720mV
Video synchronous amplitude mV			260~275mV
Video amplitude-frequency characteristic dB			0~4.8MHz			-0.5~1.5
			5.5MHz			-4.0~1.5
Audio input			Left/right channel, stereo
RS232 control interface			Standard RS232 level, 9600, 8, N, 1
RS232 data interface			Standard RS232 level, support 1200~115200
Audio Receiving
Audio Rx frequency range				470.5~479.950MHz, factory setting:479.950MHz
Audio Rx sensitivity				≤-111dBm
Audio Tx modulation				GFSK
Frequency step				150KHz
Audio decoding overall bitrate				4800bps
Audio output				2.1Vp (open circuit output)
Environment
Protect standard	IP66, dustproof and rainproof
Working temperature	-25°C~55°C
Storage temperature	-40°C~70°C
Appearance

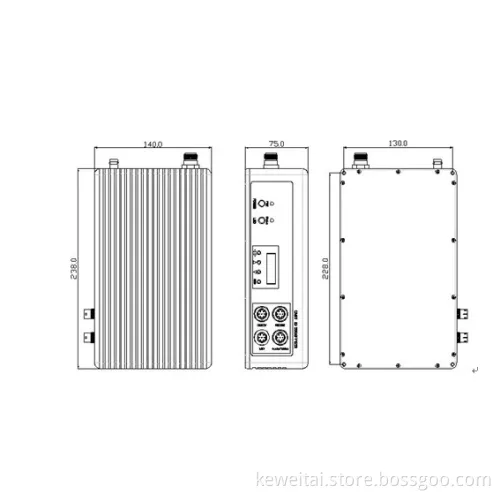

Dimension		238mm×140mm×75mm
Weight		2.5kg
