Basic Info

Product Description

Basic Info.

Model NO.

MV2025TJ20

Transport Package

Box

Trademark

ALLTECH

Origin

Shenzhen

Production Capacity

10, 000 PCS/Year.

Product Description

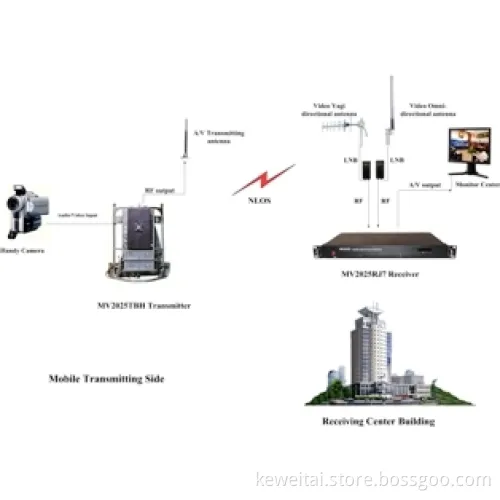

In the urban and mountainous environmens, the vehicle mountable transmitter is the most suitable equipment that can realize the NLOS(non line-of-sight) transmission in high-spped mobile conditon. Furthermore, this system is high-powered and can realize the longer range transmission(3-50 km in NLOS conditon)

Features:
1. Broadcasting A/V encording; multiple A/V input modes
2. SDI video, embedded audio and composite video input; HDMI digital interface
3. HDMI input and support HDCP protocol
4. H.264 encording and support 1080P output
5. COFDM modulation and H.264 video compression for stable and high-quality transmission
6. Alufer casing, shake-proof and good radiating
7. Working frequency such parameters panel display
8. Data bit-rate auto-adjusted subject to channel bandwidth
9. ABS encrypted video transmission
10. 19-inch standard casing for easy installment on standard rack

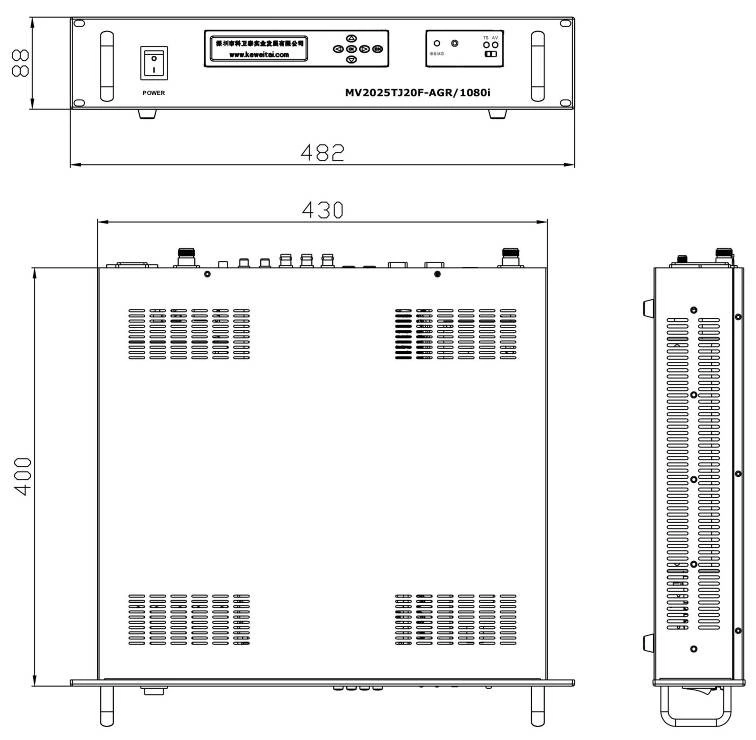

Dimension: HD Wireless Transmitter Vehicle Mount 20W

working voltage	AC220 ±20V
working current	≤0.7A @AC220V
frequency output	300~500MHz, 560~760MHz, or user customized
modulation	COFDM
constellation	QPSK, 16QAM, 64QAM
FEC	1/2, 2/3, 3/4, 5/6, 7/8 optional
CUI	1/32, 1/16, 1/8, 1/4 optional
carrier	2K
bandwidth	1.5/2/4/6/7/8 MHz
power output	42dBm, adjustable
power flatness	full band≤2dB
C/N	≥58dB@42dBm
SHG	>62dBc
YPbPr	YPbPr@720P, YCbCr@1080i
RS232 control interface	standard RS232 level, 9600, 8, N,1
RS232 data interface	standard RS232 level, support 1200~115200
