Basic Info

Product Description

Basic Info.

Model NO.

MV2025SS2F8-B HD Portable Video Repeater

Continuous Lasting

More Than 4 Hours

Rx Input Frequency Range

170MHz~860MHz

Rx RF Bandwidth

1.5/2/4/6/7/8MHz

Tx Frequency Output Range

550MHz~810MHz

Tx RF Bandwidth

8MHz

Tx Frequency Range

560MHz~760MHz or User Customized Tx Factory Defaul

Transport Package

Carton

Specification

ISO9001, SGS

Trademark

ALLTECH

Origin

Shenzhen, China

Production Capacity

5000pieces/Year

Product Description

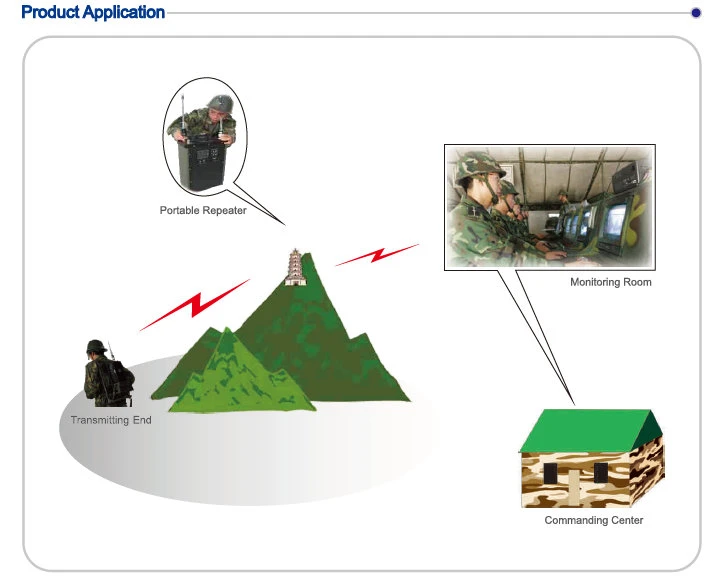

This portable HD repeater could be used to relay the camera image from the first responder to the command center if there are certain obastcles, as mountains or high buildings between the camera side and the receiving side. This HD repeater could resend the full HD video with very stable performance to command center for longer range
Wireless Video Transmission HD Portable Video Repeater

Functions & Features:
n   Full HD H.264/MPEG-2 decoding with D1, 720P, 720I, 1080I, 1080P such HD formats
n   Working as separate transmitter and receiver
n   ABS encryption
n   One-channel video and two-channel audio (left/right channel) signals simultaneously input
n   1.5/2/4/6/7/8MHz bandwidth optional
n   Outdoor rainproof case design
n   Working frequency and other parameters panel display

Power Supply
Working voltage V	DC12V~DC16V
Working current A	≤3.5A@DC12.5V
Continuous lasting	>4 hours

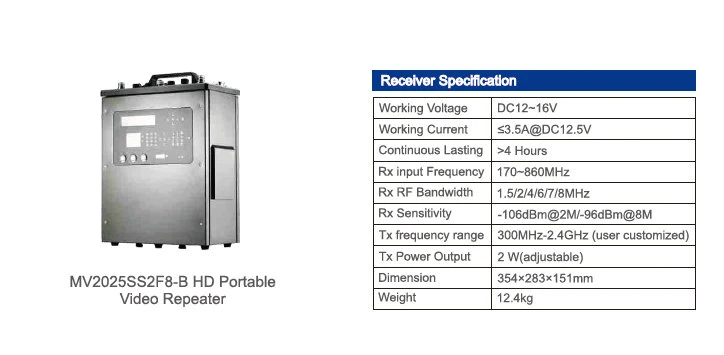

Receiving Part
Rx input frequency range	170MHz~860MHz
Rx RF bandwidth	1.5/2/4/6/7/8MHz
Rx frequency range	170MHz~860MHz or user customized
Rx sensitivity	-106dBm@2M/-96dBm@8M
Rx factory default frequency	300MHz~450MHz
Rx feed output voltage	DC12V±0.5V
Rx feed output current (MAX)	800mA
Transmission Part
Tx frequency output range	550MHz~810MHz
Tx RF bandwidth	8MHz
Tx frequency range	560MHz~760MHz or user customized
Tx factory default frequency	560MHz~760MHz
Tx power output	32dBm~34dBm
Tx output frequency spectrum CNR	≤-28dB@32dBm
Tx second harmonic components	>52dBc
Environment
Working temperature	-25°C~55°C
Storage temperature	-40°C~70°C
Appearance
Dimension	354mm×283mm×151mm
Weight	12.4kg
