Basic Info

Product Description

Basic Info.

Model NO.

BLDC motor

Structure and Working Principle

Brushless

Type

Unique

Certification

ISO9001, CCC, EMC, FCC,Ce

Brand

Alltech

No Load Speed Rpm

384

No Load Currentta

1.20

Torquetn.M

0.40

Currentta

6.2

Rated Voltagetv

22.2

Termianal ResistancetmΩ

180

Torque Constanttg.Cm/a

707

Kvtrpm/V

280

Speed/Torque Constanttrpm/G.Cm

0.04

Customized

Support

180W

360W

Weight

232

Industrial Drone Motor

Drone Motor Factory Direct Selling

Transport Package

Solid Protection

Specification

206g

Trademark

ALLTECH

Origin

China

Production Capacity

500000

Product Description

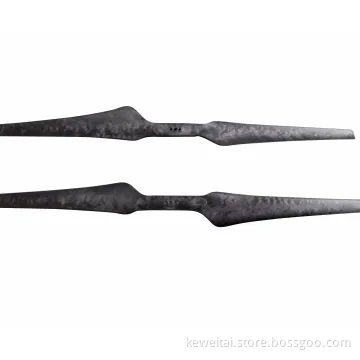

ALLTECH is a manufacturer for industrial drones, which offer whole drone system, and drone accessories such as drone motors, propellers and carbon fiber drone frame. ALLTECH product lines include the carbon fiber production line, motor production line, and cofdm wireless mobile video transmissions.

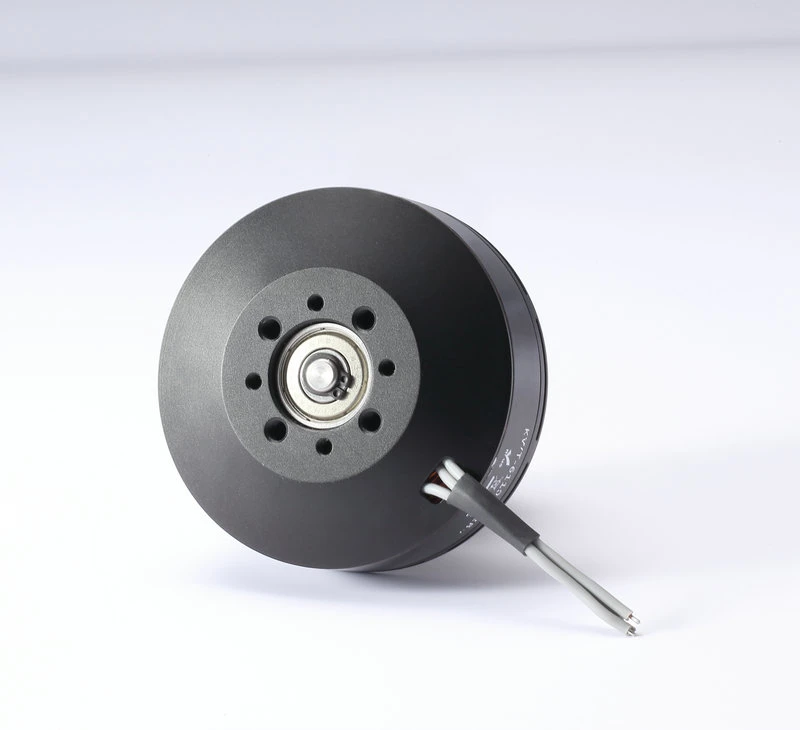

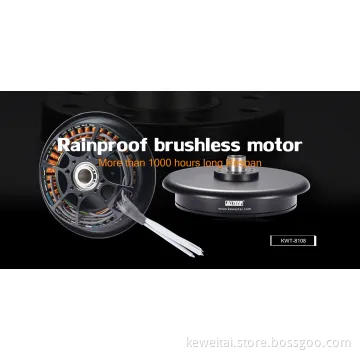

Rainproof Powerful BLDC Motor Industry Drone Use Customization

We offer different customers various solutions. ALLTECH motor has get the certificates of CE.

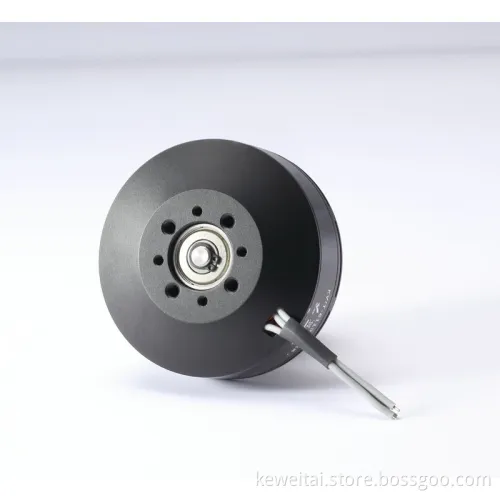

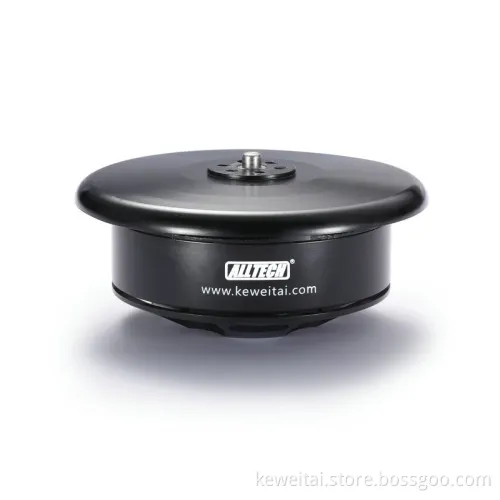

KWTBLDC61 Series Φ66.6×29 180W/360W

Motor Parameter			KWTBLDC	KWTBLDC
Motor Model			60106S	601012S
Values at nominal voltage
	Rated voltage	V	22.2	44.4
Free Load	No load speed	rpm	6384	6044
Free Load	No load current	A	1.20	0.57
At Max. Efficiency	Max.efficiency	%	87.20%	89.20%
	Speed	rpm	2836	5744
	Current	A	6.2	10.8
	Torque	N.m	0.40	0.71
At Max.Output	Max.output	W	560	2264
	Speed	rpm	1503	3022
	Current	A	51.8	103.5
	Torque	N.m	3.6	7.16
At Stall	Stall current	A	103	207
At Stall	Stall torque	N.m	7	14.3
Motor characteristic
Termianal resistance		mΩ	180	180
Torque constant		g.cm/A	707	709
KV		rpm/V	280	136
Speed/Torque constant		rpm/g.cm	0.04	0.04

Features

20 pairs of poles hi-torque motor design; Precision engineered for maximum energy conversion; Precision balanced rotor, smoothness for best reliability and maximum RPM
Multiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection. To top things off the entire series comes with completely sealed stators and integrated temperature protection and measurement sensors.
Long stable performance: No error time lasts long for 2700 hours at 24V voltage and 60A current working conditions.
Satisfy National armed force standard, EMC, FCC,CE and so on.

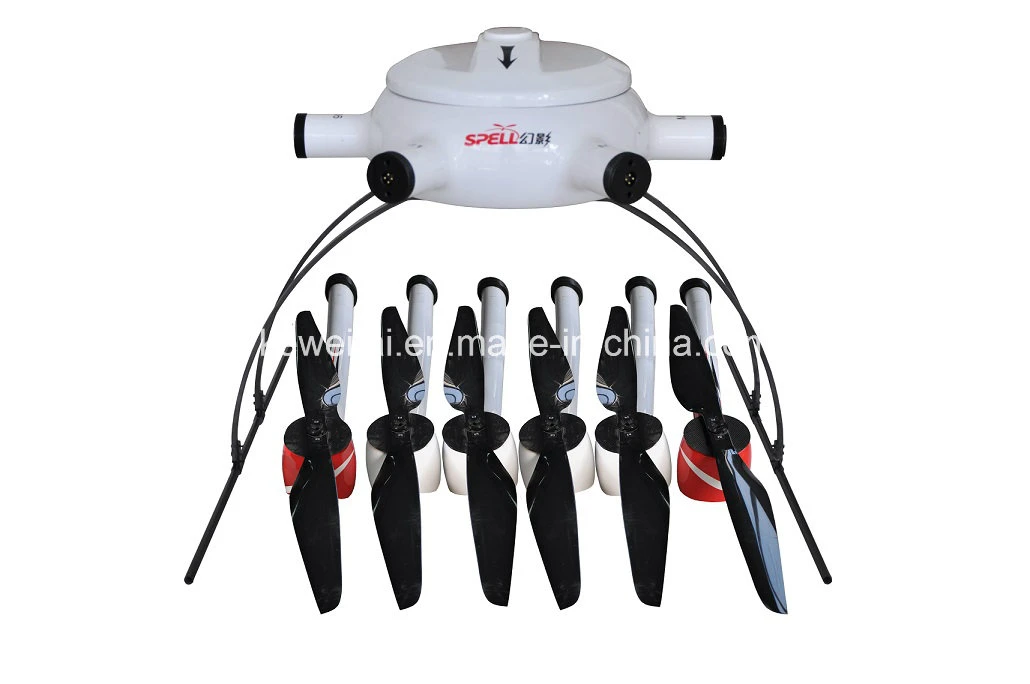

Suitable for industrial and specialized drones( Multi-rotor, fixed wings drones)

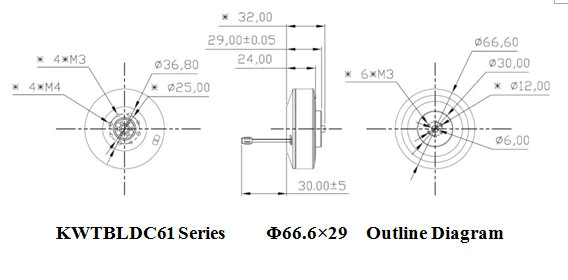

KWTBLDC61 Series Φ66.6×29 Outline Diagram

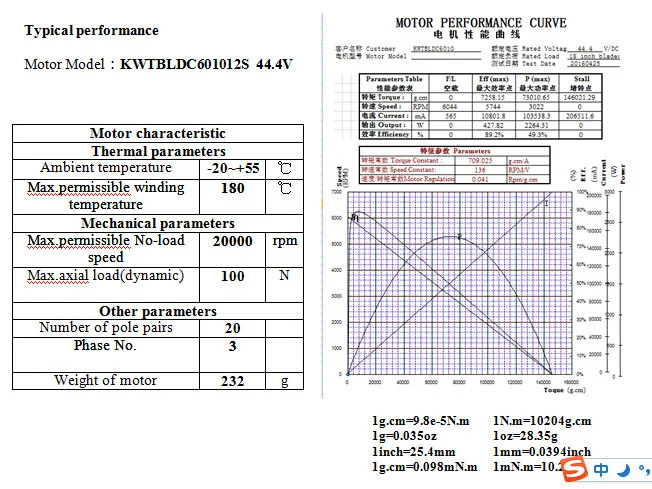

Motor characteristic
Thermal parameters
Ambient temperature	-20~+55	ºC
Max.permissible winding temperature	180	ºC

Mechanical parameters
Max.permissible No-load speed	20000	rpm

Max.axial load(dynamic)	100	N

Other parameters
Number of pole pairs	20
Phase No.	3

Weight of motor	232	g
