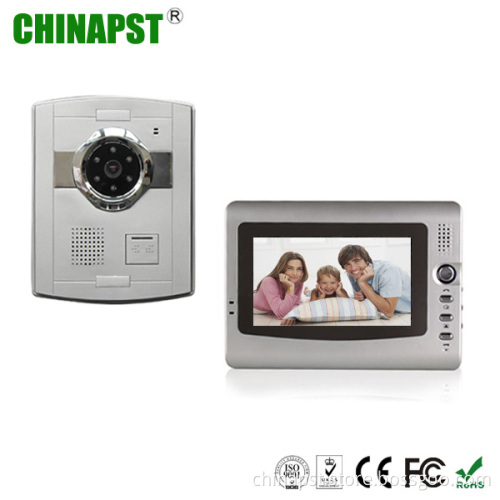

Handfree Color Video Door Phone Intercom (PST-VD906C)

Name: 7" Color Hands free LCD Video Door Phone Intercom
Model: PST-VD906C

Standard package includes:
1 x 7" Color TFT LCD Screen Monitor
1 x outdoor camera
1 x Wall Mounting Bracket for indoor monitor
1 x 100- 240V Power Adaptor
1 x 4-core short test connection cable
1 x 5-core connection cable for second monitor (optional to use)
1 x English Version Operation Manual
5 x Screws and expansion bolts
3 x screws for camera installation

Description:
This product is perfect choice to use in villas with 380 lines high definition CMOS camera (CCD camera optional and extra charge), which can monitor, intercom, unlock and call other indoor monitors.

Operation Guide:
1. Answer: When the monitor receive call from the door station, it will sound music, right now you can intercom with the visitor by pressing "Answer" key in 30 seconds, and also can see the picture before the door station. Press "Answer" key again to finish your talk. (It hangs up automatically if no answer in 30 seconds, the maximum talk time is 90 seconds.
2. Monitor: In waiting sate, if you want to view the outside video picture, press the "Monitor" key. Press again will stop the video viewing.
3. Unlock: In answering or monitor sate, press "Unlock" key to release the door lock.
4. Call: When there are some monitors connected, press "Call" to call other monitors, other monitors will ring but no image, you can intercom when you press "Talk" key on other monitor, press "Talk" key on local monitor to finish.
5. Adjust Brightness, Contrast and Volume, pls see PICs below.
6. Adjust Volume of calling: There are three volume(Big, Medium, Small) can be chosen. Press " Indoor Call key" for 5 seconds, click "Monitor key " to select the volume, then, click "Indoor Call key" to confirm.
7. Select melodies: There are 3 melodies can be chosen. Press "Monitor key" for 5 seconds, click "Indoor Call key" to select the melody, then, click "Monitor key" to confirm.
