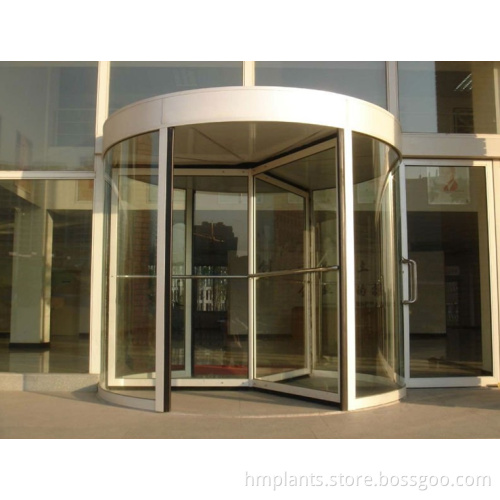

Three Wing Automatic Revolving Door

luxury 3-wing automatic revolving door adopts the international fashion double exhibition box layout. With such special and novel design it realizes the perfect integration of automatic revolving door and automatic sliding door. This luxurious appearance, excellent performance is widely used in hotels, office buildings, shopping malls, banks and other upscale offices.



Specifications:

. Door Body: Special aluminum door frame

. Glass: door leaf and exhibition box are 6/8mm transparent tempered glasses, curved wall is 10mm   tempered glass (5 + 5mm arc safety laminated glass).

. Drive device: two sets AC100- 240V, 50-60Hz, 0.2-0.6 KW.

. Anti-jamming device: function of preventing electromagnetic interference.

   Central control computer: programmable logic control system, automatic and manual is optional.

.   Speed control: the variable-frequency speed adjustment system startups, operates and stops the  door smoothly.

. UPS control box: when electricity is failed, UPS startup the middle sliding opening door.

. Sensor: infra-red (radar) sensors, vertical rubber sensor defend pinching at entrances, anti- collision sensor at the bottom of door leaf, infra-red direct measure sensor defend pinching.

.Emergency stop button: installed on the upright column at entrance right

.Disabled button: installed on the right side column of entrance, use for disabled people to pass slowly.

. Electromagnetic lock settings: can automatically lock the door

. Status and fault display: display correct code of revolving operation or fault code.

 .Central fire prevention control device: the central induction sliding door and building fire alarm  signals connected, it will open quickly in an emergency and become an evacuation access.

. Stop position setting (optional): winter stop button, summer stop button, middle sliding door stop button, hold-open button, slow-down stop buttons etc.

.Reverse function of defend pinching.
