Hoisting Machine Cable/Tower Crane Cable/ Passenger Hoist Cable/
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
Product Description

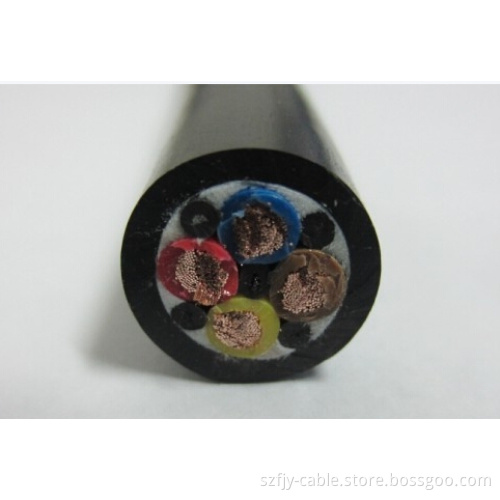

Tower crane cable
1.Reference Standards
Execution:JB/T8735.2-2011 Standard
2.use range: Suitable for AC rated voltage 300/500V,450/750V and the following tower cranes or other moving electrical equipment power control.
3. The main technical performance:
Insulation resistance of cable insulation core conversion to 20 degree should not be less than 50Ω.KM
Cable insulation core should withstand 500Hz 2000V (300/500V grade) 2500V(450/750V grade) Voltage test 5 min.
The outer sheath with strength but also flexibility,Protect the cable core not damaged,and can withstand all kinds of evil slightly climate.
Structure: Copper conductor ,rubber insulated,neoprene jacket.
4.Specifications:
1.Reference Standards
Execution:JB/T8735.2-2011 Standard
2.use range: Suitable for AC rated voltage 300/500V,450/750V and the following tower cranes or other moving electrical equipment power control.
3. The main technical performance:
Insulation resistance of cable insulation core conversion to 20 degree should not be less than 50Ω.KM
Cable insulation core should withstand 500Hz 2000V (300/500V grade) 2500V(450/750V grade) Voltage test 5 min.
The outer sheath with strength but also flexibility,Protect the cable core not damaged,and can withstand all kinds of evil slightly climate.
Structure: Copper conductor ,rubber insulated,neoprene jacket.
4.Specifications:
| Specification | Outside diameter(mm) | weight(kg) | Resistance(ohms) |
|
| 3*10 | 19 | 130 | 1.91 |
|
| 3*16 | 24 | 187 | 1.21 |
|
| 3*25 | 27 | 293 | 0.78 |
|
| 3*35 | 30 | 333 | 0.554 |
|
| 3*10+1*6 | 21 | 163 | 1.91/3.3 |
|
| 3*16+1*6 | 25 | 245 | 1.21/3.3 |
|
| 3*25+1*10 | 30 | 330 | 0.78/1.91 |
|
| 3*35+1*10 | 33 | 479 | 0.554/1.91 |
|
| 3*10+2*6 | 23 | 185 | 1.91/3.3 |
|
