Low-End Controller for Hydraulic and Pneumatic 5D Cinema

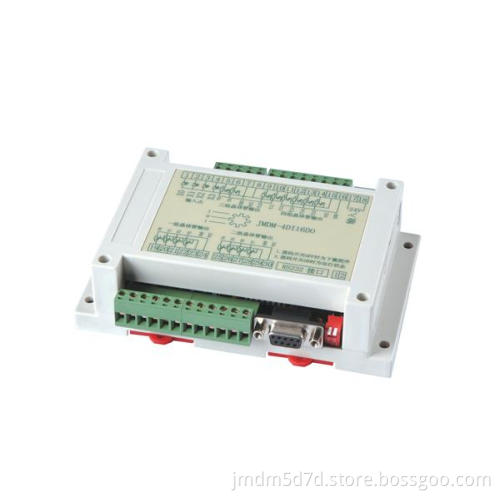

Low-end controller for hydraulic and pneumatic 5D cinema
It has 16 channels digital output, controlthe platform without
Lineartranducer
Control 3DOF double valves platform and 10 effects.
Control 3DOF single valve and 13 effects.
Control 6DOF single valve and 10 effects,
Control 6DOF double valve and 4 effects.
Performance parameters
1) Working power: The main power: AC18V ( DC24); Peripheral drive power: DC24V or DC12V:
2) The main control chip: Eight high-performance single-chip-microcomputer;
3) Storage space; Program storage space: 32K (If there is a specific need, can use 64 K); Data storage space: 16K (If there is a specific need, can use 32 K): Save the date, data is not lost after power failure;
4) Input and Output: Up to 4 inputs, 16 outputs Input and output points can be customized according to customer needs. 4 opto-isolated digital inputs, NPN input forms, input current is 10 MA; Of which two can be used as an interrupt source used to count, 16 opto-isolated digital outputs Eight of the path is for NPN transistor output, Output voltage is 24/12V, Maximum current is 4A, in addition, eight is a PNP transistor output, output voltage is 24V/12V, Maximum output current is 4A, The output status can be read back.
5) System stability: Use Optical isolation and enable the internal watchdog and rigorous high-frequency filter characteristics, make the system working stable and reliable, the driver start-up time in less than a second time.
6) Interface: A standard RS232 serial communication interface (anti-static shock of 15V), can download program by RS232 interface directly, no need burner, Convenient the procedure to modify and upgrade, Can also write the host computer software and computer or touch screen, text display peripheral communication and so on.
7) Working status indicator: 2 LED indicators, Two DIP switches according to the procedure need to set the state of the program or program parameters.
8) Shell with screws or rail mounting, integrated compact design:
Shell size: L * W * H: 146mm*90mm*40mm;
Internal control plate size: L * W * H: 122mm*86mm*28mm;
Selection tip:
The above serial control input and output system, Only 4 digital inputs, but have 16 digital outputs, other related products:
JMDM Series I / O controller: JMDM-20DIOV2 ( 12 input and 8output, 4MTMR/8MT/8MR ), JMDM-28DIOMT/MR ( 16 input and 12 output MT/MR ), JMDM-40DIOMR ( 20 input and 20 output MR ), JMDM-COM40MT (40 path transistor output ), JMDM-COM40MR (40 channel relay output );
JMDM series analog controller: JMDM-10DIO10AIO, JMDM-20DIO4AIO, JMDM-120MBADDA;
JMDM series motion controller: JMDM-20DIOV2, JMDM-2011, JMDM-20DIODISP, JMDM-1830, JMDM-120DIOADD.
