20 Channels Medium-End 5D Motion Cinema Controller

20 channels medium-end 5D motion cinema controller

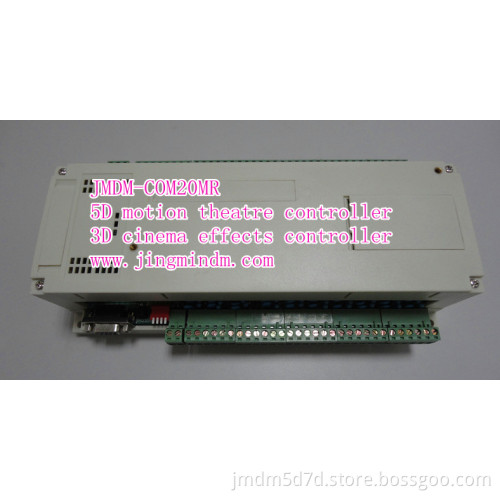

JMDM-COM20MR:control 3 or 6 DOF platforms and max 17 effects.Generally used in all kinds of 4D theater,experience hall.
Advantages:directly control of AC special effects equipment.

Introduction:
 With high reliability and stability of industrial microcomputer serial digital controller, place extra emphasis on 20 channels 10A big load control, such as lighting, heating wire, power switch and high power devices, etc.; can connect 4 channels switch quantity input signal at the same time, can meet photoelectric, electric capacitance and inductance, various sensors such as hall type and input switch, convenient to many of the industrial and civil applications of travel switch, infrared switch input signal detection or conditions input, control the output motion.

Features:
1.Product design and quality: professional industrial high reliable and strong resistance against lightning electromagnetic high frequency interference circuit design and circuit layout is compact and reasonable, good heat dissipation and use patch type more chips and components, high confidentiality, industrial quality reliable products, stable performance, can be competent for all kinds of electromagnetic interference, industrial site conditions, such as arc current, stable welding current, frequency converter and other workplace can be used.
2, I/O: 4 channels whole photoelectric isolated input, 20 channels relay output; The output with super load capacity:
1) each channel of 20 all lead to a normally open and normally closed,can control 20 groups different voltage on and off;
2) each relay output maximum load is 220A 10A, the characteristic of the high frequency signal filter circuit to prevent contact flint, improve relay lifetime;
3. 2 kinds of communication interface optional: 1 RS485 interface and 1 RS232 interface can be chosen;
4. 3 workings: support independent control, RS232 serial port monitorinf, RS485 serial port monitoring;
5. 4 toggle switch that can be directly addressing hardware, convenient multi networking use;
6.Precise time control: with the system clock, which can realize the precise time control;
7.System stability: with industrial-grade lightning protection, strong resistance to electromagnetic interference, high reliability, no crash phenomenon.
8.Relay working status indicator light: every channel relay output has an indicator light, convenient observation work status;
9.Industrial shell, dustproof and beautiful, convenient installation: the installation guide rail or screw hole.
10.Serial port communication protocol is simple: send string or ASCII code directly (many plagiarist is tedious lengthy code)
