Industrial Grade Relay Controller with 24 Channel Output

JMDM-COM24MR Industrial controller 24 channels relay output controller

Introduction

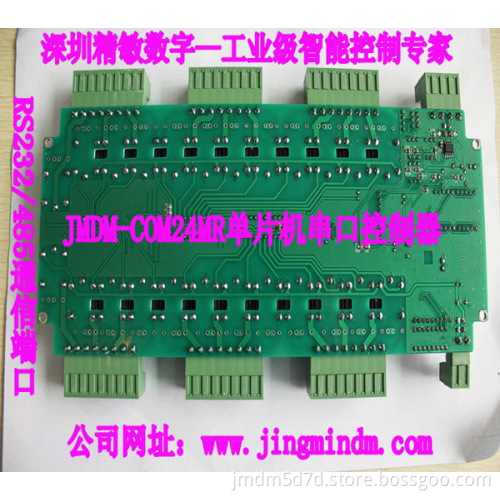

JMDM-COM24MR is shenzhen jingmin digital machine Co., Ltd., independent research and development with high reliability and stability of industrial microcomputer serial digital controller, the relay output (MR), characterized by 8 bits dial the code switch and 2 bits digital tube display, to control and display output mode, 24 channles 10A big load control, such as lighting, heating wire, power switch, high power devices, etc. Products with high professional industrial-grade reliable lightning protection strong high frequency electromagnetic interference circuit design and circuit layout is compact and reasonable, good heat dissipation and use patch type more chips and components, high confidentiality, industrial quality reliable products, stable performance, can be competent for all kinds of electromagnetic interference, industrial site conditions, such as arc current, stable welding current, frequency converter and other workplace can be used.

Performance parameter
1. System stability: Adopting the enable internal watchdog and strict high frequency filter characteristics, make the system stable and reliable work, crash since the start time within 1ms.
2. Output: 24 channels relay output, every channel maximum load voltage is 0 ~ 220V, maximum current 10A, every channel has a normally open and normally closed, a power supply delivery point, suitable for a variety of application requirements.
3. Controller working status indication: Electric controller, 1 LED lights flashing on behalf of the single chip microcomputer controller works well.
4.8 toggle switches: The default hardware directly addressed to achieve 256 addresses a code, convenient multi-controller network constitutes a large communication system; Also can according to the program need to programming to set program state or parameters; Also can be customized according to customer needs, controller for addressing software.
Attention
1. The customer shall be in strict accordance with the wiring diagram will all control panel wiring out, after check and correct, then can connect the power supply. Otherwise will burn out the controller or external input/output devices.
2. The controller input signal is the default use external DC 12 or 24V power supply.
Application
1. Control the execution of all kinds of AC or DC components such as cylinder, solenoid valve, relay, heating wire, general motors, light bulb, LED lamp series, such as general motors output load on and off;
2. Can realize low control high voltage load on and off;
3. Cam seril port remote real-time conditions monitoring and control for power plant, automatic workshop production site, the remote machine room equipment, lighting, power supply, audio, video, electronic entrance guard on and off, dispense of manual labor, save manpower cost;
4. Can be used in the centralized control building, advertising, gymnasium industrial such as sand table lamp, lighting, stage lighting, audio and other multimedia equipment, intelligent control home appliances switch, etc.
5. Can be used for computer control of peripheral equipment switch;
6. Use for a variety of distributed control system, remote I/O module, the remote control system;
7. Can be used for all kinds of sand control, construction, bridges and other models.
8. Can be used in the mechanical control, the output logic sequential control, its function, scalability, cost-effective better than 24 points of PLC;
9. Using a computer serial port control, easy realize: Remote, centralized real-time condition monitoring and control of high voltage, multi-channel lighting, power supply, audio or video switch, entrance guard switch on and off of digital signal; A serial port to collect, display, back to read all kinds of switch signal state;
