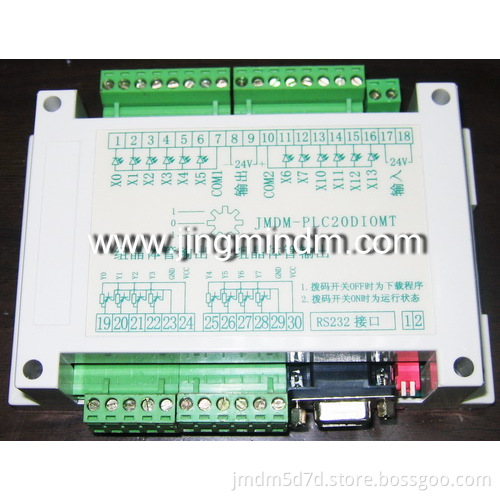

JMDM-20DIOV2MT
RS232 serial prot controller 8 channels transistor output controller

RS232 Serial Prot Controller with 8 Channels Transistor Output

Introduction

JMDM-20DIOV2MR/MT serial port control relay (transistor) board use for serial port control of all kinds of digital quantity/switching value signal input and output. can achieve the following functions:
1.Collected by the controller switch signal input state, through serial port real-time display on the PC monitor interface of the computer.
2.Through the computer serial port control relay (or transistor) on and off, to implement the control of the various switching value signal.
In all kinds of civil, industrial, with very extensive application value, with strong resistance to electromagnetic interference, lightning protection, the characteristics of stable and reliable.

Product feature

1.JMDM-20DIOV2MR/MT serial port controller is used to relay (or transistor) open and close.
2.Upper machine (PC or PLC) via serial port connect to the controller, the controller sends a string of ASCII code instructions can control some (or all) of the relay open or close, completely unnecessary to consider the hardware circuit of relay selection and driver, etc.
For example, serial port input O(002, 1) the No. 2 relay electric suction; serial port input O(012, 0), the No. 12 relay electrical power lossing.
3.This serial port controller can also remote collect input-output status, for example, the controller via serial port send out I(004, 1) means the fourth entrance point with signal input, serial port send out I(011, 0) means No.11 entrance point without signal input.
4.Serial port controller and the control host computer may be extended by 485 bus, the max networking can achieve 1km;
5.A single serial port controller can be independently controlled 12 channels relay (or transistor) open and close, alco can collect 16 state of the input point. Through the address code, in the case of a delay of 1 second license, a serial port can be addressed and control maximum of 255 pieces of serial port controllers, constitute a 4080 input points, 3060 output points of large system.
6.Can provide serial port communication protocol and communications VB source program, giving the VB through RS232 serial port controller operate controllers demonstration program or develop special program.
7.JMDM-20DIOV2MR/MT can according to customers' special requirements input and output, input order within 12 channels, output order within 8 channels, typical customized products are: JMDM-8DIOV2MR/MT,JMDM-10DIOMR/MT,JMDM-12DIOV2MR/MT,JMDM-14DIOV2MR/MT,JMDM-16DIOV2MR/MT,JMDM-18DIOV2MR/MT,etc.

Usage

1.According to the wiring diagram attached to the manual connect between the controller and the device, the serial communication line between computer and controller;
2.After carefully check and correct, connect the controller of power supply;
3.Installation with attached to the serial port control software product:
Double-click JMDM serial port controller PC program SETUP \ setup file, or double-click the double-click directly JMDM serial port controller PC program SETUP\support\setup file.
4.Open the PC software, can click and control input and output points.

Application

1.Used for a variety of distributed control system;
2.Used in a variety of remote measurement and control system;
3.Can be used for building, advertising, such as lighting control, power control, automation workshop of large and medium-sized control project;
4.Can be used as a remote I/O module;
5.Can be used for computer control of peripheral equipment.

After-sale service

1.Guarantee: since the date of products sold, hardware failure under normal use, one year warranty, the warranty period after the charge maintenance costs;
2.Technical support: provide telephone, online technical support.
