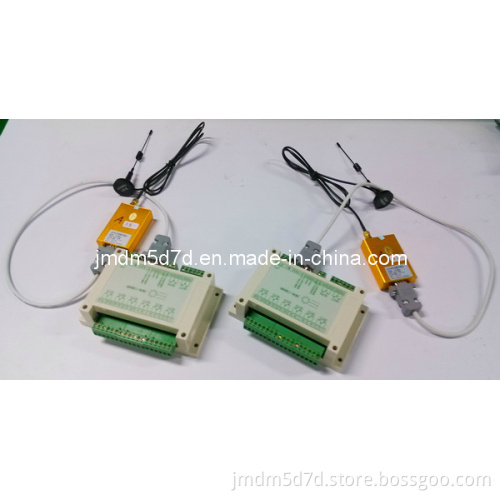

6 Input 5 Output Relay Output Controller

JMDM-COM6DI5DOMR
6 input 5 output relay output controller

Introduction

JMDM-COM6DI5DOMR is a shenzhen jingmin digital machine co., LTD., independent research and development with high reliability and stability of industrial sigle chip digital quantity serial port controller,6 channels photoelectric isolation digital signal input,can use collect 6 channel digital quantity/switching value single input, such as photoelectric sensors, hall sensors, proximity switch, infrared sensor and digital signal input; Can be used for 5 channels 10A heavy load switch control, such as lighting, heating wire, power switch, strong current switch and high power devices,etc.
Products with strong professional reliable industrial-grade high resistance against lightning electromagnetic high frequency interference circuit design and circuit layout is compact and reasonable, good heat dissipation and use patch type more chips and components, high confidentiality, industrial quality reliable products, stable performance, can be competent for all kinds of electromagnetic interference, industrial site conditions, such as arc current,welding current, frequency converter and other workplace can use stable.

Performance parameter

1.Periphery drive work power: DC 12/24V.
2.Main control chip: 8 bits high-performance single chip microcomputer with high-speed high stable FPGA programmable array circuit;
3.Data storage space: 16k (if you have specific needs,can be 32k), save the data, the data will not lost after power failure;
4.Input:6 channels digital quantity input, NPN input form,input current is 10ma, there are two way can make the interrupt source is used to count;output:5 channels relay output,every channel output maximum voltage is 220V, maximum current is 10ma; Output USES the characteristic of the high frequency signal filter circuit to prevent contact flint, improve life relay device; Every channel relay to elicit a normally open and normally close, can control 8 groups of different voltage switch; Every channel relay has a patch type high brightness leds show the electrical appliances working condition;
5.System stability: adopting the high frequency filter internal watchdog and strict, make the system stable and reliable work, crash since the start time within 1ms;
6.2 kinds of communication mode (interface) optional
1 channel standard RS232 serial communication interface (15kv static shock resistance), can be directly communicate with computer or text display peripherals; Can download the program directly by RS232 interface, without CD-R machine, convenient program modification and upgrade;
1 channel standard RS485 communication interface, can be used for the RS485 communication, support independent control,RS232 serial port monitoring,RS485 serial port monitoring.
7.Controller working status indication: 2 LED lights display;
8.2 dial switches: can be set according to the program program state or parameters;

 Application

1.Can control within 0 ~ 220V voltage range the execution of all kinds of AC or DC components such as cylinder, solenoid valve, relay, heating wire, general motors, lamp, LED string lights, ordinary motor output load on and off;
2.Can realize week current control and strong current load on and off;
3.Can serial remote real-time monitoring and control power plant, automatic workshop production site, the remote machine room equipment, lighting, power supply, audio, video, electronic entrance guard on and off, dispense of manual labor, save manpower cost;
4.Can be used in the centralized control building, advertising, gymnasium industries such as lighting, audio and other multimedia devices, intelligent control home appliances switch, etc.
5.Can be used for computer control of peripheral equipment switch
6.Use for all kinds of distributed control system, remote I/O module, remote control system;
7.Can be used for all kinds of sand table, such as building, bridge model of the control.
