5D Cinema Special Effects Controller with 8 Channels Relay Output

5D cinema special effects controller with 8 channels relay output

1. Synopsis

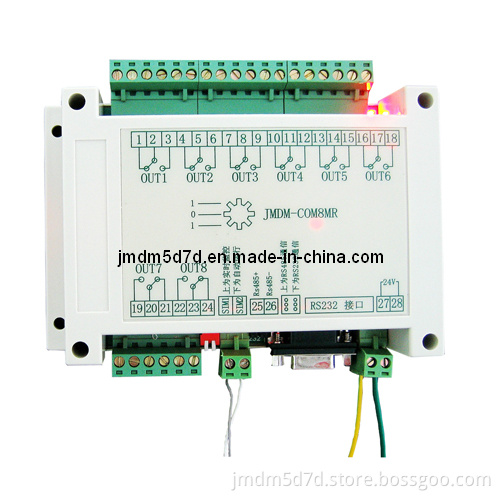

JMDM-COM8MR is a high-reliable stability industrial-grade SCM digital and serial port controller which independent research and development by Shenzhen jingmin digital machine Co., Ltd. It can be used for 8-channel 10A large load of the switch control, such as lighting, heating wire, Strong electrical switches and other high-power devices, etc. With following characters: Professional industrial-grade high-reliable anti-lightning and resistance to strong electromagnetic and high-frequency interference of the circuit design, the circuit layout is compact and reasonable, with excellent heat dissipation. Majority of SMD chips and electronic components and the product procedure with high confidentiality, of reliable industrial quality and stable performance, can be competent for a variety of big electromagnetism interface, harsh environment industrial site, such as arc current, welding current, inverter of the workplace used stability.
2. Technical parameters
1). Work power: The main power: The 12V or 24V, AC or DC gm, Periphery drive power: DC24V or DC12V;
2). And the Lord control chip: 8 bits high-performance single chip microcomputer with high speed and high stability FPGA programmable array circuit
3). Program storage space: 32K (if any specific needs, usable a64k);
4). Data storage space: 16K (if any specific needs, usable 32K), store the data, data is not lost power,
5). Output: No. 8 relay output, every road is 220V maximum voltage output bearing, the biggest bear currents are 10A; Adopt unique high frequency signal output filter circuit prevent contacts unshaven, improve the relay longevity, Every road relays are drawn a normally-on point and often close point, can control group 8 different voltage switch, Every road relays have patch type high brightness LED lamp shows relay working condition,
6). Precise control of time: Take system clock, can pass the programming year, month, day, hour, minutes and seconds system time calculations; etc.
Stability of the system: Adopting enable internal watchdog and strict high-frequency filter character, make a system is stable and reliable, since the launch of time in 1ms crashed within;
7). 2 kinds of communication mode (interface) optional: 1 RS232 interface, 1 RS485 interfaces-expandable short-circuit cap by choice. 1 road standard RS232 serial communication interface (anti static 15KV impact), can be directly with the computer or text display peripherals like communication, Through RS232 interface can be directly downloaded program, need not burn implement, convenient program modification, upgrades,
1 road standard RS485 communication interface (anti static shock and lightning 15KV) can be used RS485 communication,
8). Controller working state instructions: 2 LED lights display;
9). Two dial the code switch: According to procedures need to set the program state or procedure parameters;
3. Uses
1). Can control 0 ~ 220V voltage range AC or DC executive devices such as cylinder, solenoid valve, relays, heating silk, general motors, light bulb, LED lamp series, general motors for output load of communication, broken,
2). Can realize elv control &high load hige;
3). A serial port remote real-time condition monitoring and control power plant, automatic flower production site workshop etc, distal rooms equipment, lighting, audio, video, power supply, electronic access on or off, dispense manual operation of toil, saving human cost;
4). Can be used for centralized control building, advertising, arena industries such as lighting and sound and other multimedia equipment, intelligent control appliance switches etc.
5). Can be used for computer control various peripheral device switch,
6) And DCS for various shape control system, remote IO module, remote control system,
7). Can be applied to various layout, architecture, Bridges and so on model control.
