JMDM RS-485/232 serial port control 4 path input and 16 path output system is an application of serial port control digital input and output system which independent research and developed by Shenzhen Jingmin digital machine Co., Ltd. Mainly realized by the computer and industrial-grade high reliability and the opto-isolated digital inputs and outputs serial controller. It's with simple operation, Anti-interference, stable, powerful, economical and practical features. With high performance, low cost, easy-to-use solution for a variety of digital switch controller.

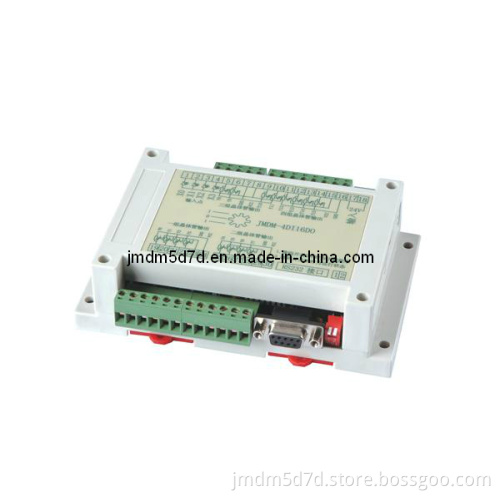

Complete set of serial control input-output system consists of seven parts: JMDM Industrial-grade high-reliability serial controller, Serial communication line, Computer with RS232 interface, external input device, external output device, and power supply. The core components is JMDM industrial-grade high reliability and the opto-isolated serial controller. JMDM-4DI16DO which independent research and development by our company, 4-path full-optically isolated digital signal inputs and 16-path full-optically isolated digital signal output can be independently controlled or PC serial port control. It can be used to collect the 4-path digital switch signal input, Such as photoelectric sensors, Hall sensors, proximity switches, infrared sensors and other digital signal input. It can control 16-path input and output: Solenoid valve, Cylinder, relay, LED light string, normal motor and implementation of the device. Jingmin PC serial port control system provides general applications, the output control button and eners the Display button, convenient for customers to use directly. The customers don't need to know any specialized programming language, directly use JMDM PC serial port control software to realize the computer PC serial port control digital signals input and output, While providing a VB example of the host computer serial port control procedures and communication protocols, User-friendly On this basis, the secondary development of integrated, Can be used within the 20-way I / O to learn, experiment, industrial applications.
2. System instructions
2.1 Hardware connection
1) JMDM-4DI16DO by AC 18V power supply or DC 24V power supply, selection of high quality power supply
2) Note the connection between strict accordance with product instructions behind the attached wiring diagram to connect part of the external digital input, part of the external digital output, controller and power supply. Power wiring to be stricter; Carefully check to make sure the correct and then take, otherwise it will burn out the controller or an external input and output devices.
3)when use DC 24V or 12V power supply, the external input and output of the controller to match with the corresponding external input and output devices.

3. Applications:
1) Serial communication and control automation equipment
2) Automated quality detector;
3) Production line of intelligent detection system;
4) The detection of a variety of sensor input signal;
5) Various actuators such as control of the implementation of the solenoid valve, cylinder
