Auto Diagnostic OBD GPS Tracker

GOT10 OBD GPS Tracker Auto Diagnostic OBD GPS Tracker can OBD interface, OBD diagnostic, plug and play,Voltage detection ACC, can be trackered on the platfrom through computer & smart phone.
Typical application areas : , vehicle maintenance, technology researchers, no need to wiring, especially for private car, logistics enterprises, fleet management, bus management, insurance, power, oil, telecommunications, taxi, car sales, car rental

If you are finding Auto Diagnostic OBD GPS Tracker, Car Diagnostic Tool Android, Car Diagnostic App for Smartphone, Car Diagnostic App Android, GOT10 is your best choice.

PRODUCT FEATURES:

■ Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
■ Plug and play, Easy to install.
■ GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history route playback.
■ Cloud storage OBD data , Vehicle speed, Coolant temperature, fuel consumption and other standard OBD2 diagnostic data, some cars model support read mileage, remaining oil.
■ Keelin Tracking Service Platform, Keelin APP Client, SMS query
■ Support EELINK protocol, can be integrated to any platform of the customer's
■ OTA upgrade firmware.

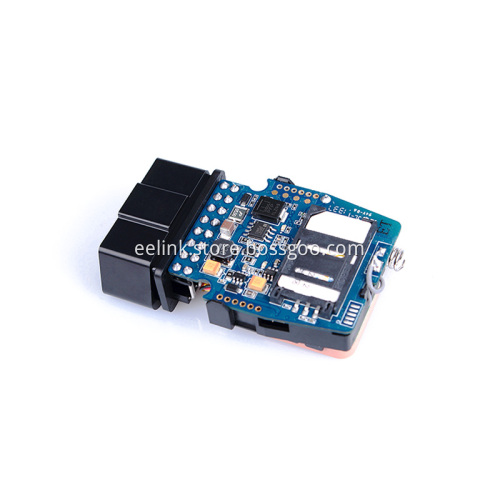

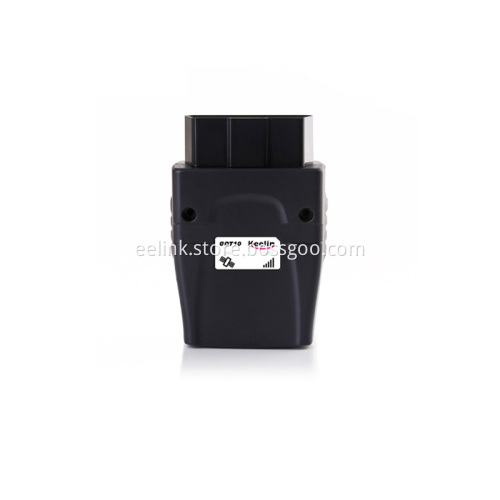

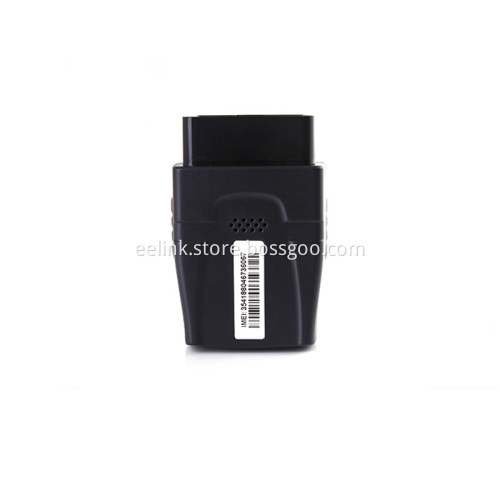

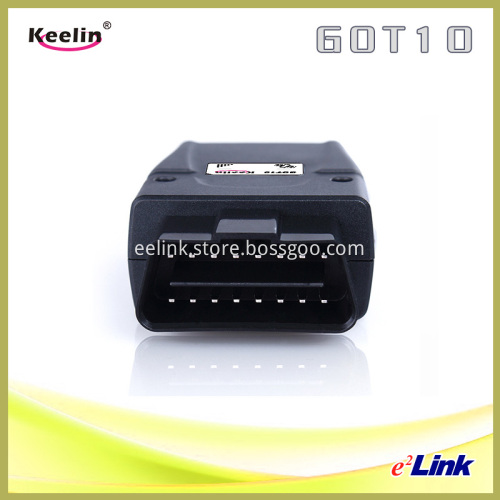

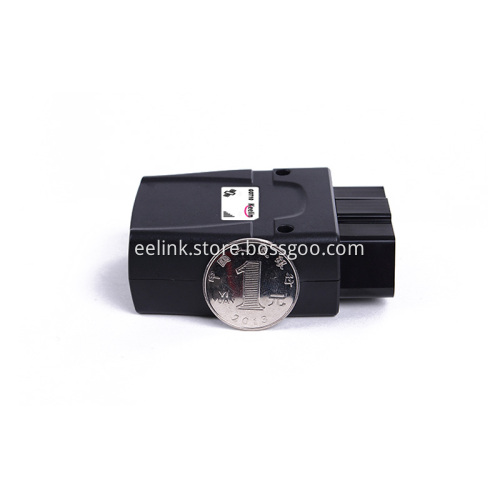

PRODUCT PICTURE:

PLATFORM/APP:

■ Real-time Tracking
■ Route Play Back
■ OBD Diagnose
■ Vibration Alarm
■ Collision / Falling Alarm
■ Speed Alarm
■ Geo-fence Alarm

You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.

Voltage	12 / 24 VDC
Standby Current	<10mA@12V
Work Current	<40mA@12V
GPS Positioning Accuracy	5-15m (Depend GPS signal)
GSM Positioning Accuracy	About 200m (Depending on density of base stations)
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
Hot/Warm/Cold Start time	<3s,<15s,<60s
OBD Interface	OBDⅡ SAE_J1962
OBD Protocol	CAN:ISO 15765 Legacy OBD: ISO 9141-2/ ISO 14230 KWP2000
Dimensions (mm)	56.5(L)X47(W)X 24.6(H)
Operating Temperature	-20℃~70℃
Operating Humidity	20%~80%RH
Weight	56 g

Accessory:

OBD Extension Cable ( Optional)

Installation:

Connect to the OBD interface and enjoy it .

Ⅸ. Troubleshooting
9.1 Cannot connect to the platform
The terminal is never online on the position server after installation . Please check the terminal:
1)If the power cables are wired correctly? Pay attention to not connect them to the controlling cables of the vehicle.
2)If the SIM card is installed correctly? Please refer to the installation instructions.
3)Check the status of the LED indicators. If the terminal is OK, the red LED and the blue LED will intermittently flick.
4)Inquiry the parameters of terminal via commands and check the accuracy of the parameters.
9.2 Offline status on the platform
First check if the LED indicators are OK, if cannot check them, you can check the SIM card following next steps:
1)call the SIM card of the terminal and check if you can hear the connect ring.
2)Check if the vehicle is in the area where there is no GSM signal.
3)Check if one terminal or all terminals are offline in the area where terminal is offline. If all terminals are offline, you should ask the network operator. If the network is OK.
4)Check if the SIM card has enough balance.
5)If the terminal becomes offline on the last day of one month, please check if GPRS is close.
6)Inquiry the parameters of terminal via commands and check the accuracy of the parameters.
9.3 Not positioning for a long time
If the GPS is active, but the terminal cannot be positioned for long time, please check the terminal:
1)If the vehicle is in the place where there is no GPS signal.
2)The GSM and GPS signal may be weakened if the terminal is installed in the place with electromagnetic wave absorption material(such as metal blocks).
9.4 Position drift
Serious position drift will be found in places where GPS signal is poor. Please drive the vehicle to the open places.
9.5 Command receiving abnormally
1)Check the instructions format.
2)Check if the vehicle is in the places where there is GSM signal.
3)Check if the SIM card is properly installed.

Customization

Shenzhen Eelink Communication Technology Co. Ltd is a creative hi-tech company which focus on GPS tracker R&D and market leading. We offer customization according to different customer's requirements...
*Case one
  We customize one OBD tracker to provide complete tracking solutions for a well-known company. This model combined hardware to software, including base positioning service platform and value-added positioning service platform. Users can quickly track, position their cars through this platform
*Case two
  We design and customize one tracker used in food transportation industry for an American Logistic Food Transportation Company. This tracker monitors the food temperature all the way during transportation.
*Case Three
  Special Customization GPS Tracker for North American customer. We've got FCC, PTCRB Certificate and the defective rate is less than 0.1%. Sales volume has reached one million till now.
*Case Four

  Customize GPS phone for kids with multiple function of positioning, remote monitoring and radiation protection.
