WiFi Home Automation IP Camera

1. Specifications:
Image device: 1/4 CMOS, Lens HM1375
Resolution: 1280x720(720P), 640× 480(VGA), 320× 240(QVGA)
Minimum illumination: 0.1LUX
SNR: ≥ 50db
Gain control: Automatic
White balance: Automatic
Lens port: C/CS port
Audio compression: PCM/MP3
Network: WIFImodule W2M30003V3P With shielding box
Network: TCP/IP, HTTP, DHCP, DNS, PPPoE, NTP, SNMP, DDNS, SMTP, RTP, P2P, FTP, SMTP
Network port: RJ45 / WIFI
RS 485 interface: 1 channel, halfduplex RS485, Support transparent channel connection, Support for multiple yuntai agreement
Port: PCB board 2*40.5*1.6mm 4 tier Copper foil thickness: 35um Immersion Gold: 0.05um
Audio input: 1channel Line In, 3.5mm audio interface, support voice dialogue
Audio output: 1channel Line out, 3.5mm audio interface, support voice dialogue
I/0 port: 6pin(one channel Alarm input port, one channel Alarm output port, RS485 port)
Localstorage: 1 SD card, support standard SD, SDHC memory card, max 32GB
Operating temperature: 10° C ~ +50° C
Operating humidity: Less than 90% (no condensation)
Power Consumption: ≤ 3W
Compatible: Windows, Mac, I Pad, I Phone, Android
2. Function
Motion detection: Support hardware window, multizone, Do not take up system resources
Support dualstream/ Support video area shade/ Free online dynamic DNS
Alarm detecting: Motion detection, Video loss, Network disconnection, Screen cover, Sensor linkage
Warning function: Linkage alarm output; Yuntai linkage; Client warning
P2P function: Client, ANDROID, IOS
Install easily, plug with the power, use by the network
Step 1. Connect the web, plug with the power.
Step 2: Install the client soft
1. Use CD-Rom to install
2. Download the soft in the net to install
Step 3: Input the account and password, you can use at once

Optional: Configure wireless WiFi access password

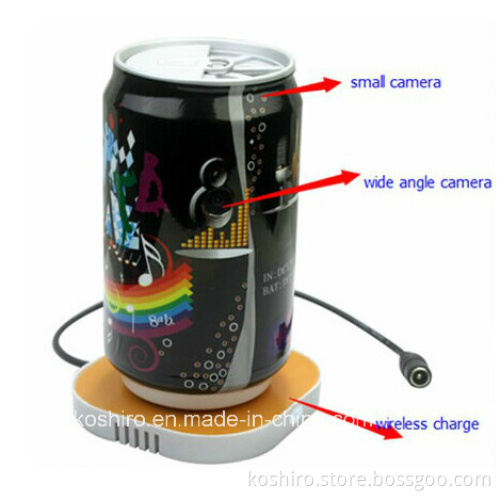

3. The samples:
