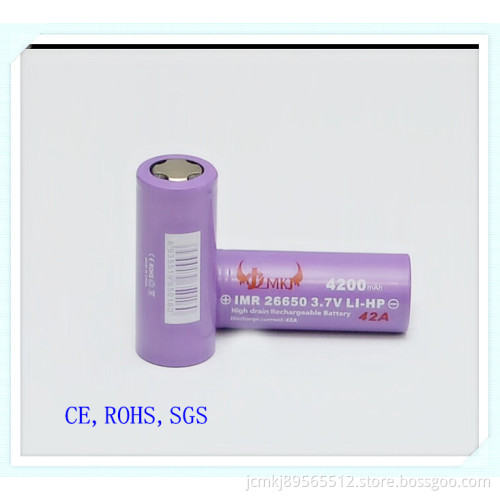

JCMKJ Lithium Ion Rechargeable Battery 26550-4200mAh,42A,10C Discharge,Flat head
Specifications:
1. Capacity:
Nominal: 4200mAh
Min.: 4200mAh
2. Dimensions:
Diameter: 26+/-0.2mm
Height: 65+/-0.2mm
3. Features:
1) Lithium ion 26650 cylindrical rechargeable battery
2) 3.7V 4200mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time
With complete varieties and various combination modes, the battery products of the company can be designed and processed according to the requirements of customers.
Its products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, wireless microphones, medical equipment and other electronic products.
NO.
|
Item | Specifications |
4.1 | Typical Capacity | 4200mAh @ 0.2C Discharge |
Minimum capacity | 4200mAh @ 0.2C Discharge | |
4.2 | Nominal voltage | 3.7V |
4.3 | Standard Charge | CC/CV,0.2C5A, 4.20V |
4.4 | Standard Discharge | CC,0.2C5A, 3.00V |
4.5 | End-of-charge Voltage | 4.20V±0.05V |
4.6 | End-of-charge Current | 0.01C5A (At CV mode) |
4.7 | End-of-discharge Voltage | 3.0V |
4.8 | Charging Time | 8.0hours(standard charge) |
4.9 | Quick Charge Current | 4500mA(1.0C rate) |
4.10 | Quick Discharge Current | 4500mA(1.0C rate) |
4.11 | Max Discharge Current | 45000mA (3.0C rate) |
4.12 | Initial Impedance | Max:25mΩ |
4.13 | Weight | Approx:83±3g |
4.14 | Operating temperature | Charging: 0~45°C
Discharging:-20~60°C |
4.15 | Storage temperature | -5~35°C |
4.16 | Storage Humidity | ≤75% RH |
4.17 | Appearance | Without scratch, distortion, contamination and leakage |
4.18 | Standard environmental condition
|
Temperature :23±5°C
Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa |
|
|
|
