Product Description

Our products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, walkmans, wireless microphones, medical equipment and other electronic products.

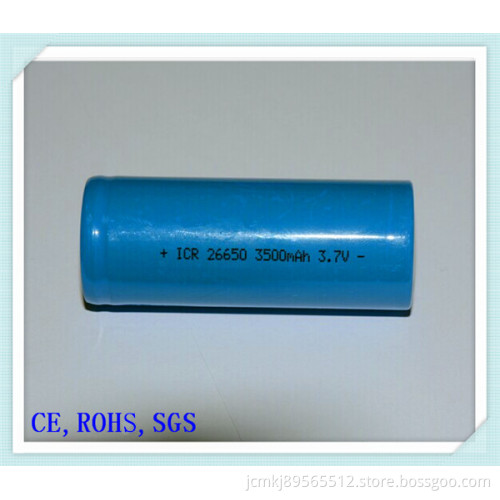

Lithium Ion Battery 26650-3500mAh 3.7V

The discharge curve of different ratio
Voltage
(v)
Li-ion Battery 26650-3500mAh, High Rate Discharge, Power Bank, E-Cigarette Battery, Audio Battery, Lithium 26650 Battery, Lithium Battery

Discharge time (min)

Specifications:
1. Capacity:
Nominal: 3500mAh
Min.: 3500mAh

2. Dimensions:
Diameter: 26+/-0.2mm
Height: 65+/-0.2mm

3. Features:
1) Lithium ion 26650 cylindrical rechargeable battery
2) 3.7V 4000mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time

With complete varieties and various combination modes, the battery products of the company can be designed and processed according to the requirements of customers.
Its products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, wireless microphones, medical equipment and other electronic products.

NO.	Item	Specifications
4.1	Typical Capacity	3500mAh @ 0.2C Discharge
4.1	Minimum capacity	3500mAh @ 0.2C Discharge
4.2	Nominal voltage	3.7V
4.3	Standard Charge	CC/CV,0.2C5A, 4.20V
4.4	Standard Discharge	CC,0.2C5A, 3.00V
4.5	End-of-charge Voltage	4.20V±0.05V
4.6	End-of-charge Current	0.01C5A (At CV mode)
4.7	End-of-discharge Voltage	3.0V
4.8	Charging Time	8.0hours(standard charge)
4.9	Quick Charge Current	3500mA(1.0C 5rate)
4.10	Quick Discharge Current	3500mA(1.0C 5rate)
4.11	Max Discharge Current	10500mA (3.0C 5rate)
4.12	Initial Impedance	Max:20mΩ
4.13	Weight	Approx:80±3g
4.14	Operating temperature	Charging: 0~45°C Discharging:-20~60°C
4.15	Storage temperature	-5~35°C
4.16	Storage Humidity	≤75% RH
4.17	Appearance	Without scratch, distortion, contamination and leakage
4.18	Standard environmental condition	Temperature :23±5°C Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa
