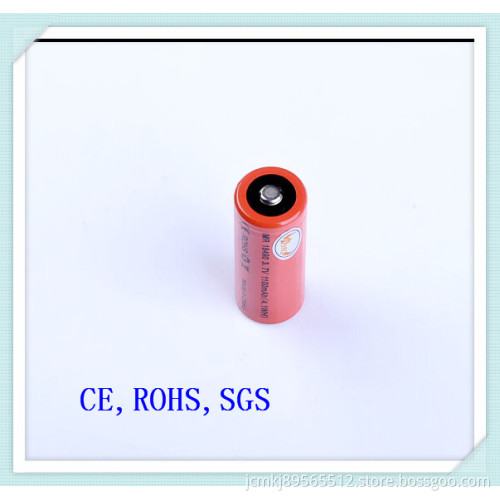

Lithium18490-1100mAh battery, 3.7V High Cap

Jcmkj Li-ion Battery Imr18490-1100mAh, High Cap, E-Cigarette Battery, High Power Battery, Li Ion Battery,

Specifications:
1. Capacity:
Nominal: 1130mAh
Min.: 1100mAh

2. Dimensions:
Diameter: 18+/-0.2mm
Height: 49+/-0.2mm

3. Features:
1) Lithium ion 18490 cylindrical rechargeable battery
2) 3.7V 1100mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time.

Jcmkj Li-ion Battery Imr18490-1100mAh, High Cap, E-Cigarette Battery, High Power Battery, Li Ion Battery,

Its products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, wireless microphones, medical equipment and other electronic products.

NO.	Item	Specifications
1	Typical Capacity	1130mAh @ 0.2C Discharge
1	Minimum capacity	1100mAh @ 0.2C Discharge
2	Nominal voltage	3.7V
3	Standard Charge	CC/CV,0.2C5A, 4.20V
4	Standard Discharge	CC,0.2C5A, 3.00V
5	End-of-charge Voltage	4.20V±0.05V
6	End-of-charge Current	0.01C5A (At CV mode)
7	End-of-discharge Voltage	3.0V
8	Charging Time	8.0hours(standard charge)
9	Quick Charge Current	1100mA(1.0C 5rate)
10	Quick Discharge Current	1100mA(1.0C 5rate)
11	Max Discharge Current	16500mA (15.0C )
12	Initial Impedance	Max:18mΩ
13	Weight	Approx:32±2g
14	Operating temperature	Charging: 0~45° C Discharging:-20~60 °C
15	Storage temperature	-5~35°C
16	Storage Humidity	≤75% RH
17	Appearance	Without scratch, distortion, contamination and leakage
18	Standard environmental condition	Temperature :23±5 °C Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa
