Jcmkj Lithium Cylindrical Battery 18350-900mAh, 18A, 15-20c Discharge, Flat Head, E-Cigarette Battery, E-Cigarette, Audio Battery, Battery

Get Latest Price

Payment Type:: T/T, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Paypal

Product Description

Our products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, walkmans, wireless microphones, medical equipment and other electronic products.

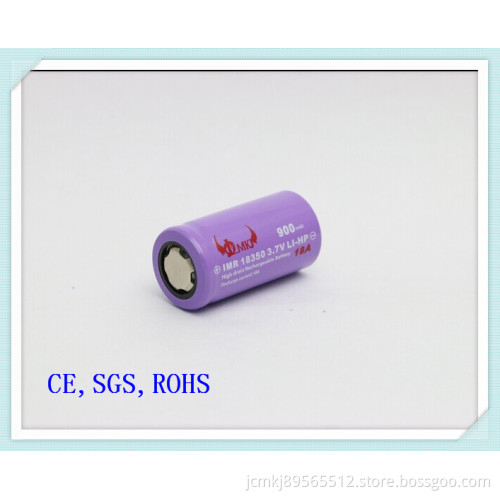

JCMKJ Lithium 18350-900mAh battery 3.7V, Flat head,15C-20C discharge
Specifications:
1. Capacity:
Nominal: 9, 30mAh
Min.: 9, 00mAh
2. Dimensions:
Diameter: 18+/-0.2mm
Height: 35+/-0.2mm
3. Features:
1) Lithium ion 18350 cylindrical rechargeable battery
2) 3.7V 9, 00mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time.

NO.	Item	Specifications
1	Typical Capacity	930mAh @ 0.2C Discharge
1	Minimum capacity	900mAh @ 0.2C Discharge
2	Nominal voltage	3.7V
3	Standard Charge	CC/CV,0.2C5A, 4.20V
4	Standard Discharge	CC,0.2C5A, 3.00V
5	End-of-charge Voltage	4.20V±0.05V
6	End-of-charge Current	0.01C5A (At CV mode)
7	End-of-discharge Voltage	3.0V
8	Charging Time	8.0hours(standard charge)
9	Quick Charge Current	900mA(1.0C rate)
10	Quick Discharge Current	900mA(1.0C rate)
11	Max Discharge Current	13500mA (15.0C rate)
12	Initial Impedance	Max:70mΩ
13	Weight	Approx:22±1g
14	Operating temperature	Charging: 0~45 °C Discharging:-20~60°C
15	Storage temperature	-5~35 °C
16	Storage Humidity	≤75% RH
17	Appearance	Without scratch, distortion, contamination and leakage
18	Standard environmental condition	Temperature :23±5 °C Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa
