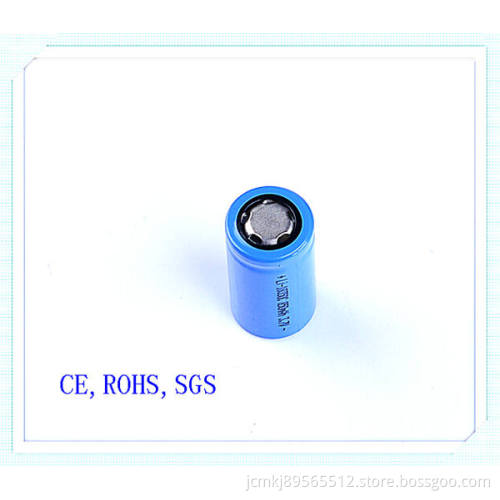

Li-ion 18350-850mAh Battery, Rechargeable Battery, Flat Head, E-Cigarette Battery, Loudspeaker Battery, Lithium 18350 Battery, Li Ion Battery,

Get Latest Price

Payment Type:: T/T, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Paypal

Product Description

Specifications:
1. Capacity:
Nominal: 850mAh
Min.: 850mAh

2. Dimensions:
Diameter: 18+/-0.2mm
Height: 35+/-0.2mm

3. Features:
1) Lithium ion 18350 cylindrical rechargeable battery
2) 3.7V 850mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time.

Its products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, wireless microphones, medical equipment and other electronic products.

NO.	Item	Specifications
1	Typical Capacity	850mAh @ 0.2C Discharge
1	Minimum capacity	850mAh @ 0.2C Discharge
2	Nominal voltage	3.7V
3	Standard Charge	CC/CV,0.2C5A, 4.20V
4	Standard Discharge	CC,0.2C5A, 3.00V
5	End-of-charge Voltage	4.20V±0.05V
6	End-of-charge Current	0.01C5A (At CV mode)
7	End-of-discharge Voltage	3.0V
8	Charging Time	8.0hours(standard charge)
9	Quick Charge Current	850mA(1.0C 5rate)
10	Quick Discharge Current	850mA(1.0C 5rate)
11	Max Discharge Current	2650mA (3.0C 5rate)
12	Initial Impedance	Max:70mΩ
13	Weight	Approx:22±2g
14	Operating temperature	Charging: 0~45° C Discharging:-20~60 °C
15	Storage temperature	-5~35°C
16	Storage Humidity	≤75% RH
17	Appearance	Without scratch, distortion, contamination and leakage
18	Standard environmental condition	Temperature :23±5 °C Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa
