Jcmkj Li-ion Battery, 16340-600mAh, 3.7V, 600mAh Rechargeable Battery, Battery Pack, 15-20c Discharge, for Electronic Toys, Li Ion Battery

Get Latest Price

Payment Type:: T/T, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Paypal

Product Description

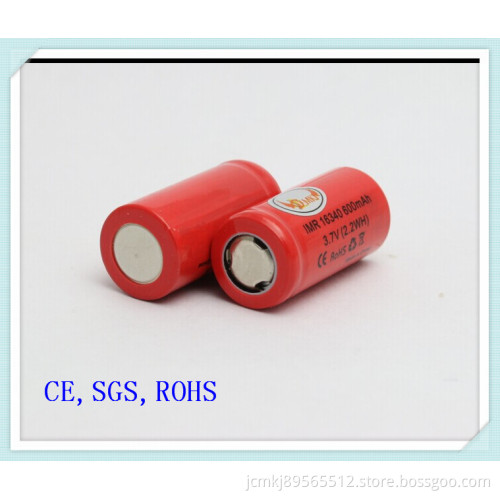

Lithium battery 16340-600MAH, 3.7V,Flat head

Specifications:
1. Capacity:
Nominal: 630mAh
Min.: 600mAh

2. Dimensions:
Diameter: 16+/-0.2mm
Height: 34+/-0.2mm

3. Features:
1) Lithium ion 16340 cylindrical rechargeable battery
2) 3.7V 600mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time.

Its products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, wireless microphones, medical equipment and other electronic products.

NO.	Item	Specifications
1	Typical Capacity	630mAh @ 0.2C Discharge
1	Minimum capacity	600mAh @ 0.2C Discharge
2	Nominal voltage	3.7V
3	Standard Charge	CC/CV,0.2C5A, 4.20V
4	Standard Discharge	CC,0.2C5A, 3.00V
5	End-of-charge Voltage	4.20V±0.05V
6	End-of-charge Current	0.01C5A (At CV mode)
7	End-of-discharge Voltage	3.0V
8	Charging Time	8.0hours(standard charge)
9	Quick Charge Current	600mA(1.0C 5rate)
10	Quick Discharge Current	600mA(1.0C 5rate)
11	Max Discharge Current	9000mA (15.0C )
12	Initial Impedance	Max:60mΩ
13	Weight	Approx:16.5±2g
14	Operating temperature	Charging: 0~45° C Discharging:-20~60 °C
15	Storage temperature	-5~35°C
16	Storage Humidity	≤75% RH
17	Appearance	Without scratch, distortion, contamination and leakage
18	Standard environmental condition	Temperature :23±5 °C Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa
