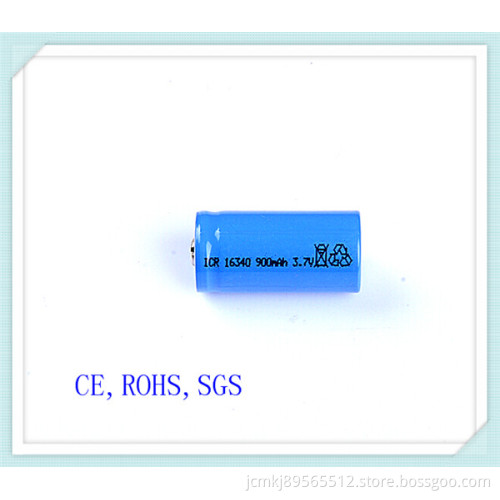

Li-ion Battery, Icr 16340 Battery, Rechargeable Battery, for Electronic Cigarette, Electronic Toys, Flashlight Li Ion Battery

Get Latest Price

Payment Type:: T/T, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Paypal

Product Description

The discharge curve of different ratio
Voltage
(v)
Li-ion Battery, Icr 16340 Battery, Rechargeable Battery, for Electronic Cigarette, Electronic Toys, Flashlight Li Ion Battery

Discharge time (min)

Lithiom 16340 Battery,High cap,900mAh

Specifications:

1. Capacity:
Nominal: 930mAh
Min.: 900mAh

2. Dimensions:
Diameter: 16+/-0.2mm
Height: 34+/-0.2mm

3. Features:
1) Lithium ion 16340 cylindrical rechargeable battery
2) 3.7V 900mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time.

Its products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, wireless microphones, medical equipment and other electronic products.

NO.	Item	Specifications
1	Typical Capacity	930mAh @ 0.2C Discharge
1	Minimum capacity	900mAh @ 0.2C Discharge
2	Nominal voltage	3.7V
3	Standard Charge	CC/CV,0.2C5A, 4.20V
4	Standard Discharge	CC,0.2C5A, 3.00V
5	End-of-charge Voltage	4.20V±0.05V
6	End-of-charge Current	0.01C5A (At CV mode)
7	End-of-discharge Voltage	3.0V
8	Charging Time	8.0hours(standard charge)
9	Quick Charge Current	900mA(1.0C 5rate)
10	Quick Discharge Current	900mA(1.0C 5rate)
11	Max Discharge Current	2700mA (3.0C 5rate)
12	Initial Impedance	Max:65mΩ
13	Weight	Approx:22±2g
14	Operating temperature	Charging: 0~45° C Discharging:-20~60 °C
15	Storage temperature	-5~35°C
16	Storage Humidity	≤75% RH
17	Appearance	Without scratch, distortion, contamination and leakage
18	Standard environmental condition	Temperature :23±5 °C Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa
