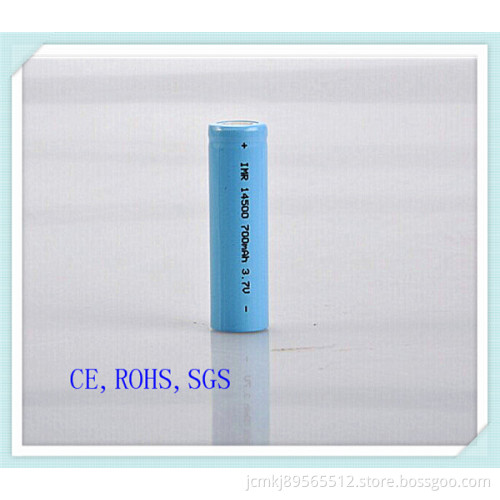

Li-ion Battery14500-700mAh Cylindrical Battery, Flat Head, Battery Pack, Electronic-Cigarette Battery, Lithium Ion Battery

Get Latest Price

Payment Type:: T/T, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Paypal

Product Description

Our products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, walkmans, wireless microphones, medical equipment and other electronic products.

voltage The discharge curve of different ratio
(v)
Discharge time (min)

Specifications:
1. Capacity:
Nominal: 730mAh
Min.: 700mAh

2. Dimensions:
Diameter: 14+/-0.2mm
Height: 50+/-0.2mm

3. Features:
1) Lithium ion 14500 cylindrical rechargeable battery
2) 3.7V 700mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time

With complete varieties and various combination modes, the battery products of the company can be designed and processed according to the requirements of customers.
Its products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, wireless microphones, medical equipment and other electronic products.

NO.	Item	Specifications
1	Typical Capacity	700mAh @ 0.2C Discharge
1	Minimum capacity	700mAh @ 0.2C Discharge
2	Nominal voltage	3.7V
3	Standard Charge	CC/CV,0.2C5A, 4.20V
4	Standard Discharge	CC,0.2C5A, 3.00V
5	End-of-charge Voltage	4.20V±0.05V
6	End-of-charge Current	0.01C5A (At CV mode)
7	End-of-discharge Voltage	3.0V
8	Charging Time	8.0hours(standard charge)
9	Quick Charge Current	700mA(1.0C rate)
10	Quick Discharge Current	700mA(1.0C rate)
11	Max Discharge Current	2100mA (3.0C rate)
12	Initial Impedance	Max:65mΩ
13	Weight	Approx:22±1g
14	Operating temperature	Charging: 0~45 °C Discharging:-20~60°C
15	Storage temperature	-5~35 °C
16	Storage Humidity	≤75% RH
17	Appearance	Without scratch, distortion, contamination and leakage
18	Standard environmental condition	Temperature :23±5 °C Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa
