Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T, Paypal

Product Description

Our products are widely applied to electronic toys, electronic cigarette, emergency lights, electric power tools, laptops, cameras, walkmans, wireless microphones, medical equipment and other electronic products.

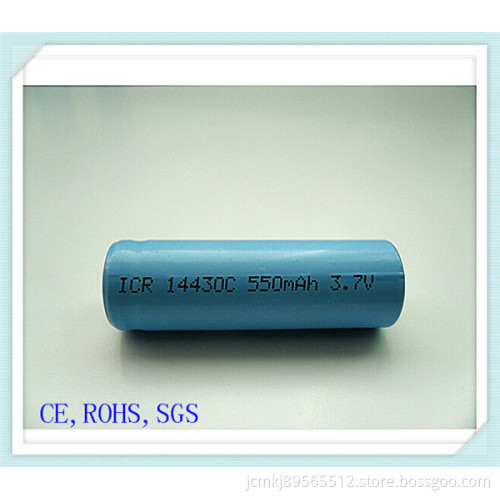

Lithium 14430-550mAh,3.7V battery

Li-ion 14430-550mAh Rechargeable Battery, Audio Battery, Battery Pack, E-Cigarette Battery, Camera Battery, Li Ion Battery

Specifications:
1. Capacity:
Nominal: 550mAh
Min.: 550mAh

2. Dimensions:
Diameter: 14+/-0.2mm
Height: 43+/-0.2mm

3. Features:
1) Lithium ion 14430 cylindrical rechargeable battery
2) 3.7V 550mAh high capacity
3) Higher energy density and lower weight than other types of rechargeable Batteries
4) Manufactured under ISO9001 to assure quality
5) Internal PCB protects against under and over charging - low voltage 2.8V, high Voltage 4.2V
6) Battery tested based on International Electrotechnical Commission (IEC) standard To ensure capacity, quality and life time.

Li-ion 14430-550mAh Rechargeable Battery, Audio Battery, Battery Pack, E-Cigarette Battery, Camera Battery, Li Ion Battery

NO.	Item	Specifications
1	Typical Capacity	550mAh @ 0.2C Discharge
1	Minimum capacity	550mAh @ 0.2C Discharge
2	Nominal voltage	3.7V
3	Standard Charge	CC/CV,0.2C5A, 4.20V
4	Standard Discharge	CC,0.2C5A, 3.00V
5	End-of-charge Voltage	4.20V±0.05V
6	End-of-charge Current	0.01C5A (At CV mode)
7	End-of-discharge Voltage	3.0V
8	Charging Time	8.0hours(standard charge)
9	Quick Charge Current	550mA(1.0C 5rate)
10	Quick Discharge Current	550mA(1.0C 5rate)
11	Max Discharge Current	1650mA (3.0C 5rate)
12	Initial Impedance	Max:60mΩ
13	Weight	Approx:16.0±2g
14	Operating temperature	Charging: 0~45 °C Discharging:-20~60°C
15	Storage temperature	-5~35 °C
16	Storage Humidity	≤75% RH
17	Appearance	Without scratch, distortion, contamination and leakage
18	Standard environmental condition	Temperature :23±5 °C Humidity : 45-75%RH Atmospheric Pressure :86-106 Kpa
